Aiphone ACS-2DR | Trove1 Starter Kit
Regular price
$1,230.45
Unit price
Brand: Aiphone Systems
|
SKU:
10395943
Regular price
$1,230.45
Unit price
Description
Description
Aiphone ACS-2DR | Trove1 Starter Kit

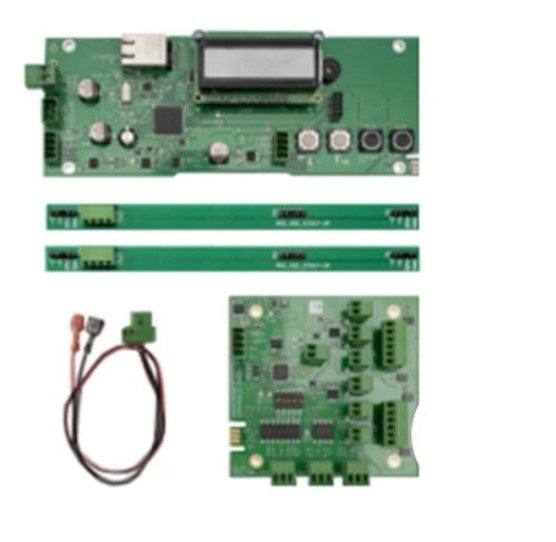

The ACS-2DR starter kit is a 2-8 door master door controller which includes a master door control board and a two?door expander board (AC?2DE). This kit fits into the AC-CA1 enclosure (sold separately), which includes a power supply.
Aiphone - ACS-2DR - Features
- Two Wiegand reader inputs (per AC-2DE)
- Integrated lock power for each door (12V DC, 500mA)
- Two solid state dry contact relays (per door)
- Three dry contact inputs (per door)
- Built-in diagnostic LCD
- Custom scripting and actions available
- Can support up to 8 doors with additional AC-2DE
- Short and over-voltage protection
- Dedicated port for battery backup
- TAA and NDAA Compliant
Specifications
Specifications
Aiphone - ACS-2DR - Specifications
| Power Source | Master Door Control Board: 12V DC (AC-PS1250) Two-Door Expander Board: 2V DC (drawn from main board) |
|---|---|
| NIC | Master Door Control Board: RJ45 Ethernet Port 10/100Mbp |
| Board Communication | Master Door Control Board: RS485 (AC-STRIP) |
| Protocols | Master Door Control Board: IPv4, IPv6, TCP, UDP, HTTPS |
| Card Storage | Master Door Control Board: Up to 100,000 users |
| Event Storage | Master Door Control Board: Up to 50,000 events (first in, first out) |
| UL/ULC | UL 294/ULC S319-05 |
| Lock Power and Option Power | AC-2DE: 12V DC 500mA |
| Contact Rating | AC-2DE: 30V DC at 1A |
