Brand: Aiphone Systems
|
SKU:
606630

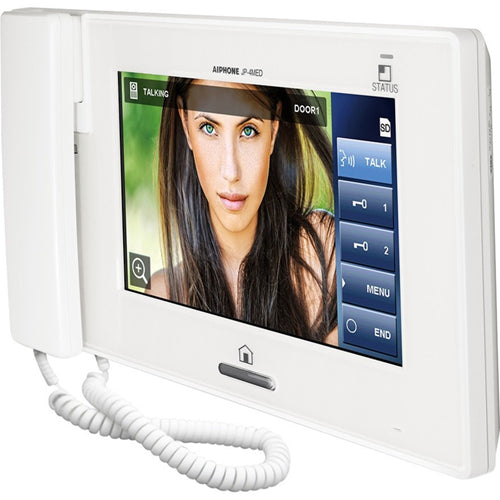

Aiphone JP-4MED 7" Video Master Station with Touchscreen LCD
Regular price
$1,880.45
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Aiphone JP-4MED 7" Video Master Station with Touchscreen LCD
Regular price
$1,880.45
Unit price
Brand: Aiphone Systems
|
SKU:
606630
Regular price
$1,880.45
Unit price
Shipping calculated at checkout.
Description
Description
The JP-4MED is a video master station with a 7" color touchscreen LCD. The JP-4MED offers handset (duplex) and hands-free (VOX) communication. This unit will support up to 4 door stations and 7 sub masters. All inside stations are equipped with a door release button for the user to allow visitor entry. The JP-4MED is also equipped with PTZ and brightness controls, giving the user control of the door station camera angle and camera lighting for better visibility. Picture memory records up to 20 calls to internal memory and 1,000 calls to a removable SD / SDHC card (not included). The JP-4MED connects to door stations using 18AWG, 2 conductor cable and connects to sub master stations using CAT-5e or CAT-6 cable.
Key Features
- 7? Touchscreen LCD
- Hands-free (VOX) or handset (duplex) communication
- Selective door release controls
- Room to room calling
- Monitor door station with the touch of a button
- Hearing aid T-Mode compatibility
- Digital pan, tilt, and zoom
- Brightness control
- Connects to JP-4MED or JP-8Z with a single Cat-5e cable
- Internal / Built-In picture memory: record max. 20 calls (6 images per call) with up to 5 calls protected from overwritingSD / SDHC card: record max. 1,000 calls (40 images per call) with up to 100 calls protected from overwriting
Specifications
Specifications
Specifications
| Name | Aiphone JP-4MED Video Door Phone, Aiphone Co., Ltd, Aiphone |
|---|---|
| Manufacturer | Aiphone Co., Ltd |
| Manufacturer Part Number | JP-4MED |
| Product Model | JP-4MED |
| Product Series | JP |
| Product Type | Video Master Station |
| Communication Mode | Full-duplex |
| Maximum Wiring Distance | 330 ft |
| Display Screen Type | LCD |
| Screen Size | 7" |
| Input Voltage | 24 V DC |
| Color | White |
| Height | 5.7" |
| Width | 10" |
| Depth | 1.2" |
| Weight (Approximate) | 1.72 lb |
| Additional Information | Door Release: N/O dry contact, 24V AC/DC, 500mA - use EL-12S (use RY-24L for larger contact rating and use RY-3DL for 3~4 doors) |
