Aiphone JV-1FD | Expansion Station
Regular price
$509.86
Unit price
Brand: Aiphone Systems
|
SKU:
10460276
Regular price
$509.86
Unit price
Description
Description

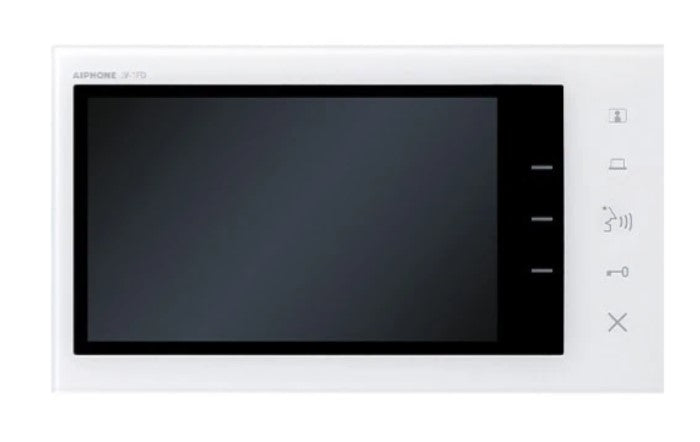

Aiphone JV-1FD | Expansion Station
The JV-1FD is an expansion station for the JV Series. The station provides an extra monitor for JV Series systems. One can be added per JV system, is sold separately, and is intended to be used only with the JVS-1A or JVS-1F box sets.
Aiphone - JV-1FD - Features
- Video identification and monitoring
- Slim design
- Hands-free communication or push-to-talk
Specifications
Specifications
Aiphone - JV-1FD - Specifications
| Power Source | 24V DC (PS-2420UL) |
|---|---|
| Dry Contacts | Door release N/O 24V AC/DC, 1A Option output N/O 24V AC/DC, 1A |
| Consumption | 100 mA standby, 780 mA max |
| Monitor | 7" TFT LCD, WVGA |
| Mounting | Surface wall mount |
| Electrical box | 3-gang box |
| Material | Flame resistant PC + ABS resin |
| Color | White |
| Operating Temp | 32~140°F (0-40°C) |
| Dimensions | 5-1/8" H x 9-1/16" W x 13/16" D |
| Weight | 1.17 lbs (530g) |
