Aiphone Systems AH-16T | Horn Speaker
Regular price
$213.62
Unit price
Brand: Aiphone Systems
|
SKU:
10609553
Regular price
$213.62
Unit price
Description
Description

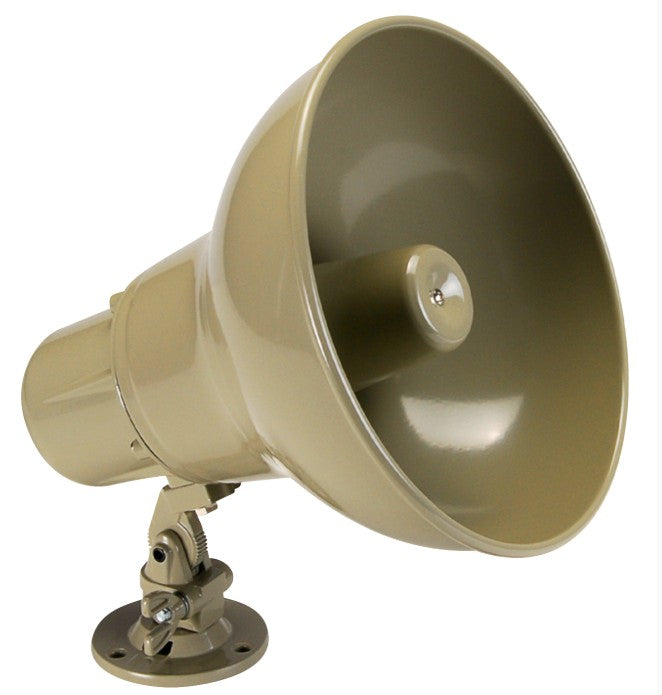

Aiphone Systems AH-16T | Horn Speaker
The AH-16T is a weather-resistant, 16W horn speaker. It can accept a 25 or 70 volt input signal, and has a rotary tap selector that can adjust the output to 1, 2, 4, 8, or 16 watts. It can be mounted horizontally or vertically, and has an adjustable
Aiphone Systems - AH-16T - Features
- Compression type, double re-entrant loudspeaker
- Adjustable speaker, 1, 2, 4, 8, or 16W
- 121 dB volume rating
- Built-in transformer for 25 or 70V systems
- Horizontal or vertical mount
- Adjustable angle
- Tan enamel finish
Specifications
Specifications
Aiphone Systems - AH-16T - Specifications
| Speaker Sensitivity | 110 dB SPL, 1W/1M |
|---|---|
| Power Rating | 16W RMS, IEA 426A Standard |
| Calculated Output | 121 dB SPL, 16W/1M |
| Frequency Response | 450Hz - 15kHz EIA, 426A Standard |
| Nominal Coverage Angle | 110° included angle, -6 dB/2kHz, Half Space |
| Audio Connection | Screw Terminals |
| Horn Dimensions | 7 5/8" DIA x 9 3/16" L |
| Mounting Base Dimensions | 3 1/8" DIA |
| Weight | 5 lbs. |
