Aiphone Systems IXG-MK | IP Video Guard Station
Regular price
$1,594.10
Unit price
Brand: Aiphone Systems
|
SKU:
10094803
Regular price
$1,594.10
Unit price
Description
Description

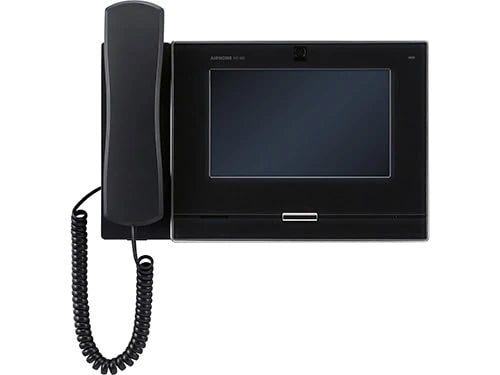

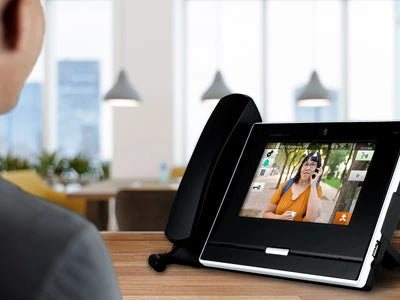

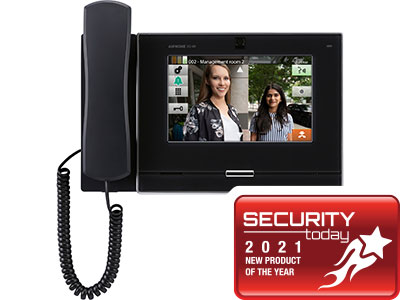

Aiphone Systems IXG-MK | IP Video Guard Station
The IXG-MK is an IP video guard station with a 7" LCD touchscreen for the IX | IXG Series system. This station can answer calls from an entrance station- tenant station- or individual door stations- and make building-wide announcements. This station is SIP compliant and is compatible with all IX | IXG series devices.
Aiphone Systems - IXG-MK - Features
- SIP Compliant
- 7? TFT LCD touchscreen
- Camera with privacy shutter
- Handset- Hands-free or push-to-talk communication
- Capture and store the audio/video of active conversations on a microSD™ card (not provided by Aiphone)
- Picture-in-Picture (PIP) allows an ONVIF Profile S IP camera and an Aiphone video intercom to be viewed simultaneously
- 2 contact outputs
- 4 trigger inputs
- 8? 0.5 watt speaker output
- 600? audio input
- UL certified
Specifications
Specifications
Aiphone Systems - IXG-MK - Specifications
| Power Source | PoE (IEEE 802.3af class 0) |
|---|---|
| Power Draw | 4.32 Watts |
| Screen | 800x400 7" LCD TFT Touchscreen |
| Camera | ?" CMOS 720p |
| Communication | Full-duplex w/ Handset or Hands Free |
| Audio Codec | G.711(µ-law- A-law) |
| Video Codec | H.264/AVC- Motion JPEG |
| Port Security | IEEE 802.1X |
| Operating Temp | 32° ~ 104°F (0° ~ 40°C) |
| Dimensions | 8-1?16" H x 11" W x 2-3?16" D |
| Mounting | Multi-angled desk stand (30°- 45°- 60°)- or wall mount with included bracket. |
