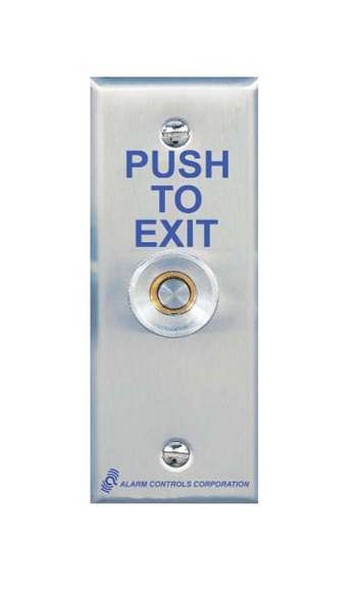

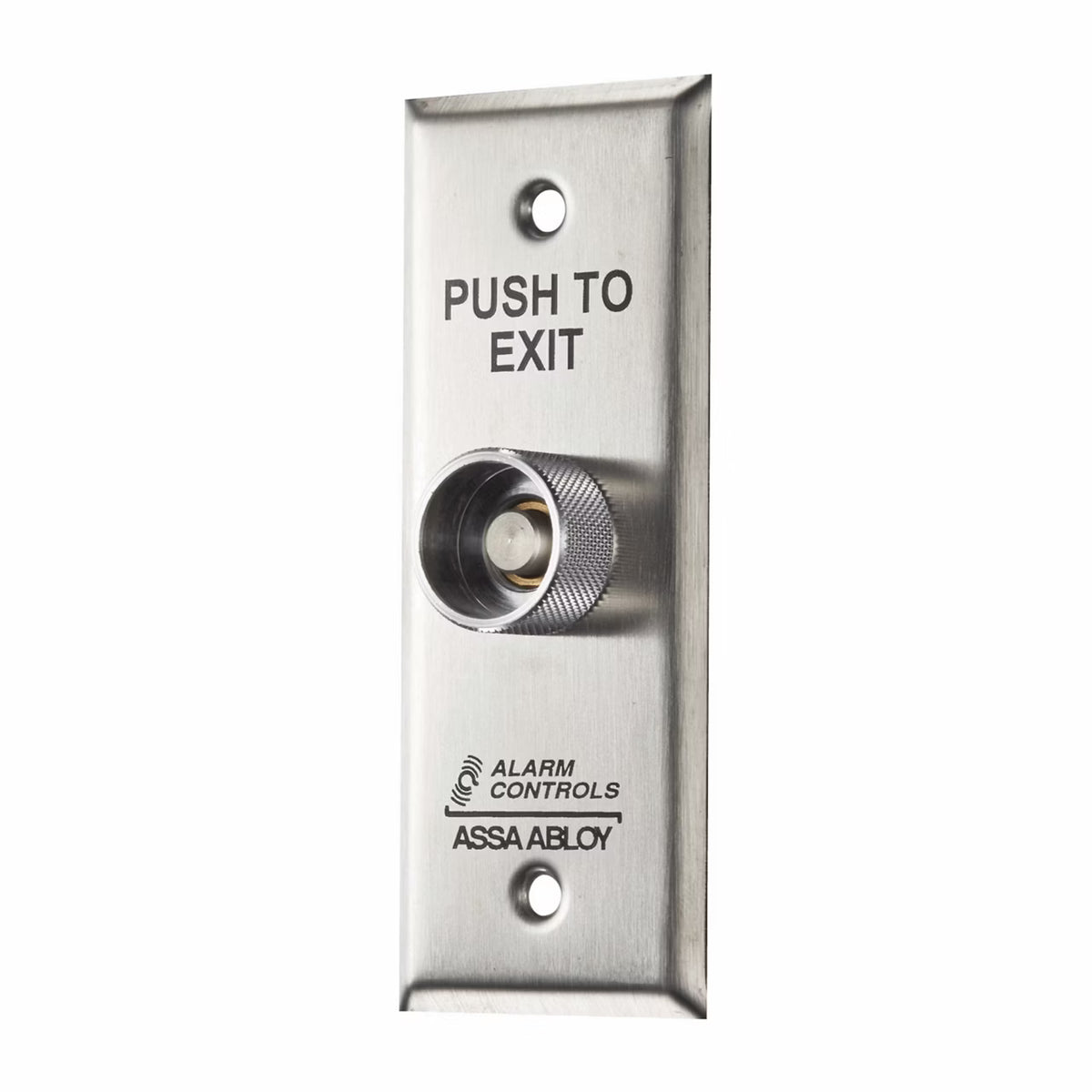

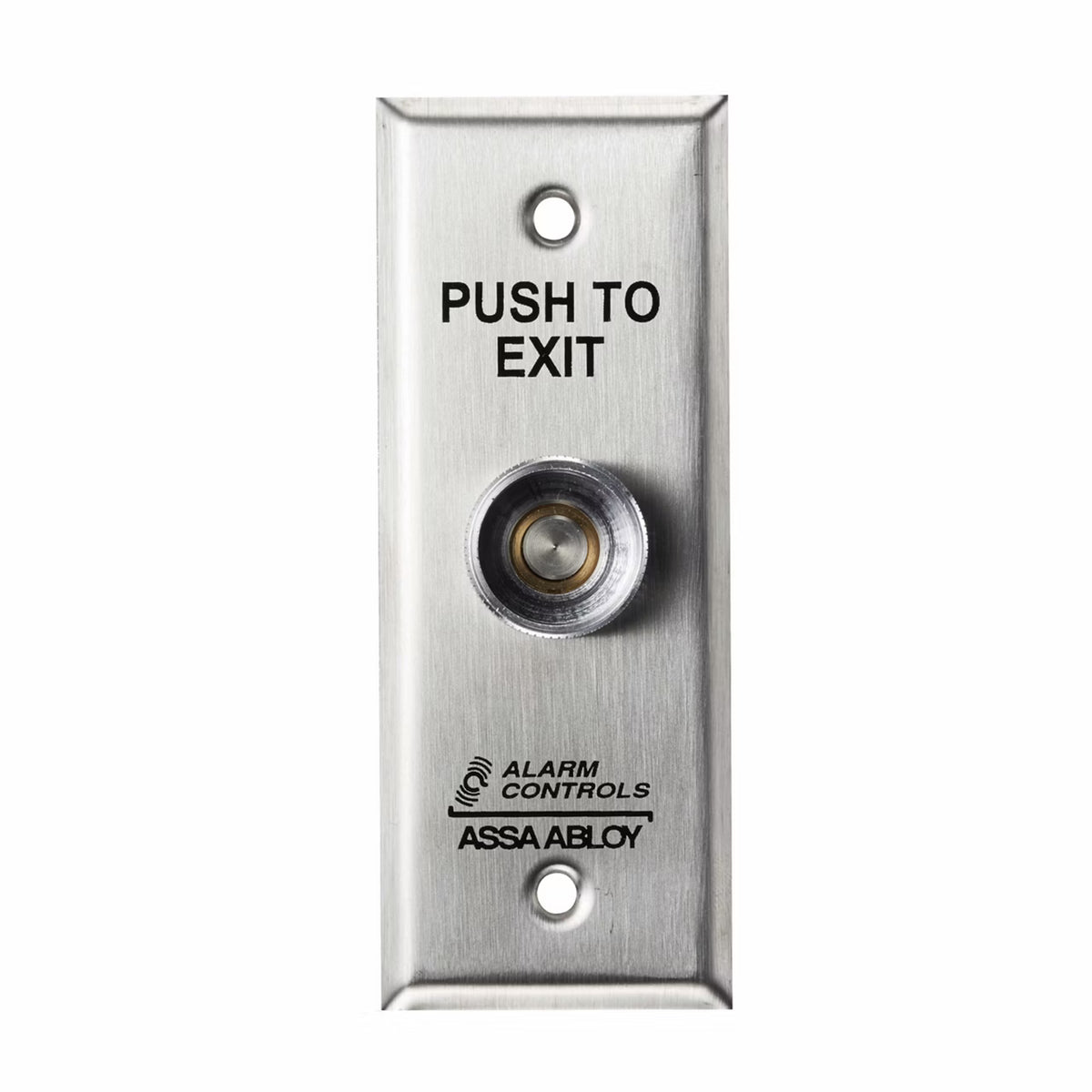

Alarm Controls TS-15 | Request to Exit Station with Pneumatic Timer
Regular price
$282.26
Unit price
Brand: Alarm Controls
|
SKU:
763984
Regular price
$282.26
Unit price
Description
Description
Alarm Controls TS-15 | Request to Exit Station with Pneumatic Timer
The narrow stile TS-15 and single gang TS-16 request to exit stations with pneumatic push button timer- provide a convenient way to keep the door unlocked for a specified amount of time- allowing easy entry or egress. The door will relock when the relay time has expired.
Alarm Controls - TS-15 - Features
- Switch mounted on a single gang stainless steel electrical plate
- 1/4" button with guard ring
- Contacts rated 10A @ 35VDC
- Switch time is repeatable ±10%
- Switch depth 2-1/4" behind plate
- Stainless steel plate
- One normally-open contact pair and on normally-closed contact pair
- Pneumatic time delay range 2 to 60 seconds
- Temperature range +15F to +120F
Specifications
Specifications
[{"title":"Features","items":["Switch mounted on a single gang stainless steel electrical plate","1/4\" button with guard ring","Contacts rated 10A @ 35VDC","Switch time is repeatable ±10%","Switch depth 2-1/4\" behind plate","Stainless steel plate","One normally-open contact pair and on normally-closed contact pair","Pneumatic time delay range 2 to 60 seconds","Temperature range +15F to +120F"]}]
