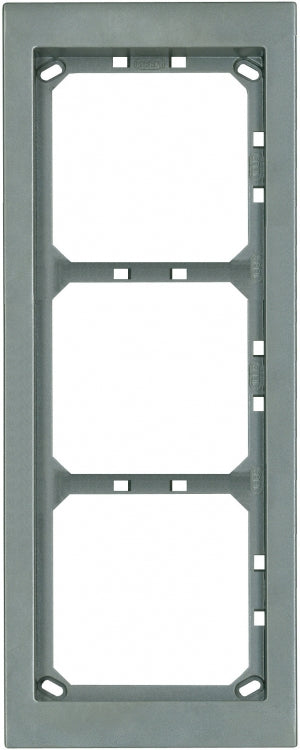

Alpha Communications MT3T | 3Hx1W Module Panel Frame - Titan
Description
Description
The MT modular frames are designed to be used with the Alpha Communications® / S.T.R.™ modular series door entry stations and system annunciators. There are seven (7) configurations available in single and double-width varieties. The MT frames are designed to be used in conjunction with the UPG series (flush) or APG series (surface) housing(s). For larger configurations, multiple housings and MT frames may be mounted alongside each other. The MT trim frames are available in three (3) finishes; Titanium (suffix-T),
Requires Upg3 Flush Box Or Apg3T Surface Box Includes 3 Mvrt Locking Strips
Specifications
Specifications
Alpha Communications - MT3T - Product Categories
- Security
- Access Control
- Panels
Alpha Communications - MT3T - Specifications
| Brand Name | Alpha Communications |
|---|---|
| Manufacturer Part Number | MT3T |
| Item Description | 3Hx1W Module Panel Frame - Titan |
| Sales Category | Electric System Controller |
| UNSPSC Code | 43211700 |
| Outside Dimensions | 5.12"W x 13.55"H x 0.63"D, (130mm W x 344mm H x 16mm D) |
Documents and Downloads
Documents and Downloads
- Alpha Communications MT3T Specification Sheet
- American Wire Gauge (AWG) to Metric Wire Gauge/Size Conversion Chart
- PGR-AL924 Pocket Pager - Field Programming Guide
- AlphaLinQ 100 Series - Wiring Diagram/Installation Manual (24 pages)
- AlphaLinQ 100 Series Block Wiring Diagram - 1 Master without Code Call - Showing Bed & Bath Stations
