Brand: Alpha Wire
|
SKU:
A1115

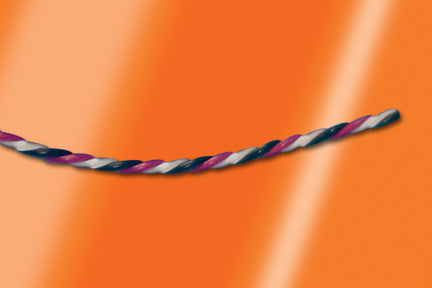

Alpha Wire 1115 MC001 | Communication-Control-Industrial-Cable, 2 Conductor, 30 AWG, Unshielded, 200 V, PVC Insulation, 0.055 Jacket Diameter, 7/38 Stranding
Regular price
$2.65
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Alpha Wire 1115 MC001 | Communication-Control-Industrial-Cable, 2 C...
Regular price
$2.65
Unit price
Description
Description
2 (1 Pair Twisted) Conductor Multi-Conductor Cable Multiple 30 AWG 1000.0' (304.8m)
Key Features
- Audio systems: speakers, microphones, intercoms
- Broadcast and studio
- Data transmission: RS-232, 422, 485
- CAD/CAM
- Computer peripherals
- Business machines
- Security systems: alarms, cameras, sensors
- Control systems
- Instrumentation systems
- Point-of-sale systems
- Banking systems
Specifications
Specifications
Specifications
| Component 1 | 2 X 1 COND |
|---|---|
| Conductor | 30 (7/38) AWG TC |
| Insulation | 0.010" Wall, Nom. PVC |
| Color Code | Alpha Wire Color Code D |
| Cable Assembly | 2 Components Cabled |
| Twists: | 48.0 Twists/foot (min) |
| EU Directive 2011/65/EU(RoHS2): | All materials used in the manufacture of this part are in compliance with European Directive 2011/65/EU regarding the restriction of use of certain hazardous substances in electrical and electronic equipment. Consult Alpha Wire's web site for RoHS C of C. |
| REACH Regulation (EC 1907/2006): | This product does not contain Substances of Very High Concern (SVHC) listed on the European Union's REACH candidate list in excess of 0.1% mass of the item. For up-to-date information, please see Alpha's REACH SVHC Declaration. |
| Packaging | Flange x Traverse x Barrel (inches) |
| Temperature Range | -20 to 80°C |
| Bend Radius | 10X Cable Diameter |
| Pull Tension | 1.76 Lbs, Maximum |
| Voltage Rating | 200 VRMS |
| Characteristic Impedance | 98 ? |
| Inductance | 0.23 µH/ft, Nominal |
| Conductor DCR | 109 ?/1000ft @20°C, Nominal |
