Brand: Alpha Wire
|
SKU:
1149C-QTS

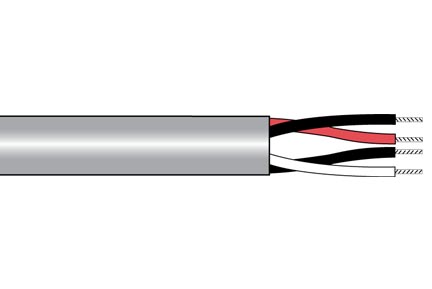

Alpha Wire 1149C SL001 | 38 (19 Pair Twisted) Conductor Multi-Pair Cable Slate 18 AWG - 500.0' (152.4m)
Regular price
$24.18
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Alpha Wire 1149C SL001 | 38 (19 Pair Twisted) Conductor Multi-Pair ...
Regular price
$24.18
Unit price
Description
Description
Alpha Wire 1149C SL001 - CONTROL CABLE - 19PR 18 AWG 75C (UL) TYPE CM
Key Features
- Audio systems: speakers, microphones, intercoms
- Broadcast and studio
- Data transmission: RS-232, 422, 485
- CAD/CAM
- Computer peripherals
- Business machines
- Security systems: alarms, cameras, sensors
- Control systems
- Instrumentation systems
- Point-of-sale systems
- Banking systems
Specifications
Specifications
Specifications
| Component 1 | 19 X 1 PAIR |
|---|---|
| Conductor | 18 (16/30) AWG Tinned Copper |
| Insulation | 0.016" Wall, Nom. PVC |
| Color Code | Alpha Wire Color Code A |
| Pair | 2/Cond Cabled Together |
| Twists: | 5.3 Twists/foot (min) |
| Cable Assembly | 19 Components Cabled |
| Twists: | 1.3 Twists/foot (min) |
| Orientation: | Components to be arranged from INSIDE LAYER to OUTSIDE LAYER |
| Core Wrap | Clear Mylar Tape, 25% Overlap, Min. |
| Jacket | 0.070" Wall, Nom.,PVC |
| Color(s) | SLATE |
| ALPHA WIRE-* P/N 1149C 19PR 18 AWG 75C (UL) TYPE CM OR AWM 2464 OR C(UL)75C TYPE CMG FT4 CE ROHS* = Factory Code[Note: Product may have c(UL) or CSA markings depending upon plant of manufacture.] | |
| CE: EU Directive 2011/65/EU(RoHS2): | This product complies with European Directive 2011/65/EU (RoHS Directive) of the European Parliament and of the Council of 8 June 2011and the amending Directive 2015/863/EU of 4 June 2015 . No Exemptions are required for RoHS Compliance on this item. Consult Alpha Wire's web site for RoHS C of C. |
| REACH Regulation (EC 1907/2006): | This product does not contain Substances of Very High Concern (SVHC) listed on the European Union's REACH candidate list in excess of 0.1% mass of the item. For up-to-date information, please see Alpha's REACH SVHC Declaration. |
| California Proposition 65: | Exempt from warning labels based on the Consent Judgment. Please see Alpha's CA Prop 65 Statement for more information. |
| Packaging | Flange x Traverse x Barrel (inches) |
| Temperature Range | -20 to 80°C |
| Bend Radius | 10X Cable Diameter |
| Pull Tension | 478 Lbs, Maximum |
| Voltage Rating | 300 VRMS |
| Characteristic Impedance | 69 ? |
| Inductance | 0.18 µH/ft, Nominal |
| Conductor DCR | 7.1 ?/1000ft @20°C, Nominal |
