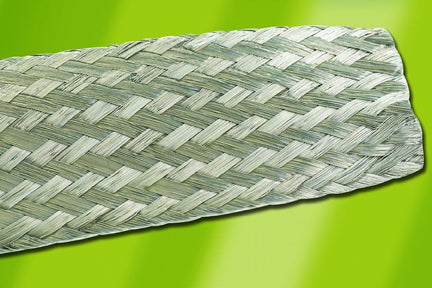

Alpha Wire 1229 SV001 | FIT-Wire-Management, Braid, Flat, 16 Curren...
Regular price
$4.06
Unit price
Brand: Alpha Wire
|
SKU:
A1229
Regular price
$4.06
Unit price
Description
Description
Flat Ground Braid 0.125" (3.18mm, 1/8") - Width X 1000' (304.80m) 36 AWG
Specifications
Specifications
Specifications
| Material | Tinned Copper, per ASTM B-33 and CID-A-A-59551, latest revision |
|---|---|
| Stranding | Solid |
| Nominal Dimensions | .125 x .020 Inches |
| Number of Carriers | 24 |
| Nominal Percent Coverage | - |
| Total Number of Ends | 72 |
| Approx. Equiv. AWG | 18 |
| g) Approx. Ampacity | 16 Amps |
| Federal Spec Number | AA59569F36T078 |
| DC Resistance, Nominal | 8.15 Ohms/1000 ft. |
| 1) EU Directive 2011/65/EU(RoHS2): | This product complies with European Directive 2011/65/EU (RoHS Directive) of the European Parliament and of the Council of 8 June 2011and the amending Directive 2015/863/EU (RoHSof 4 June 2015. No Exemptions are required for RoHS Compliance on this item. Consult Alpha Wire's web site for RoHS C of C |
| REACH Regulation (EC 1907/2006): | This product does not contain Substances of Very High Concern (SVHC) listed on the European Union's REACH candidate list in excess of 0.1% mass of the item. For up-to-date information, please see Alpha's REACH SVHC Declaration. |
| California Proposition 65: | Exempt from warning labels based on the Consent Judgment. Please see Alpha's CA Prop 65 Statement for more information. |
