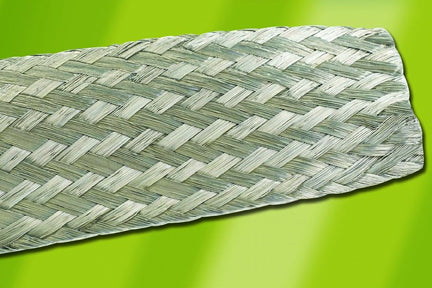

Alpha Wire 1230 SV001 | 3/16" TNC Flat Braid Rohs
Description
Description
Alpha Wire braid is an exceptional, low resistance option to create a point-to-point ground strap. In retrofit applications, braid is an ideal way to install additional shielding to your cable.
Try our newest addition to FIT family, Brass Braid Sleeving. Featuring tough, tubular expandable sleeving and protection from harmful microoganisms, Alpha Wire's Brass Braid Sleeving provides a high-end option for wire management needs. Brass Braid Sleeving protects cables in a multitude of environments, including medical, food and beverage and semiconductor.
Specifications
Specifications
Alpha Wire - 1230 SV001 - Specifications
| Material | Tinned Copper, per ASTM B-33 and CID-A-A-59551, latest revision |
|---|---|
| Stranding | Solid |
| Nominal Dimensions | .1875 x .020 Inches |
| Number of Carriers | 24 |
| Nominal Percent Coverage | - |
| Total Number of Ends | 120 |
| Approx. Equiv. AWG | 15 |
| Approx. Ampacity | 25 Amps |
| Federal Spec Number | AA59569F36T0125 |
| DC Resistance, Nominal | 4.89 Ohms/1000 ft. |
