Alpha Wire 1234 SV005 | Expandable Braided Tinned Copper Silver Cable Sleeve, 19.05mm Diameter, 30m Length, FIT Wire Management

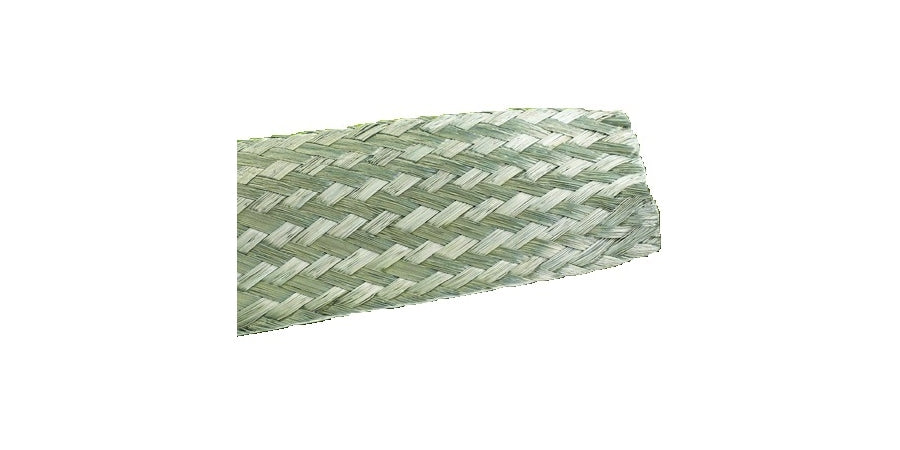

The Alpha Wire range of tinned copper, flat braided cable sleeves are ideal to be used as shielding material for short-run cables. This braided sleeve has a tight weave of multi-strand tinned copper wire. The flat braid can be used as a ground strip to provide an excellent, low-resistance ground path.
Specifications
Specifications
Alpha Wire - 1234 SV005 - Specifications
| Sleeve Diameter | 19.05mm |
|---|---|
| Colour | Silver |
| Material | Tinned Copper |
| Sleeve Length | 30m |
| Braided | Yes |
| Expandable | Yes |
| Wall Thickness | 1.02mm |
| Conductor Material | Tinned Copper |
| Product Type | Braid |
| Conductor Size | 7 Awg (American Wire Gauge) |
| Conductor Stranding | 864 Strands In Each Conductor |
| Insulation Color | Silver |
| Unspsc Code | 26121524 |
