Brand: Alpha Wire
|
SKU:
A1243/5

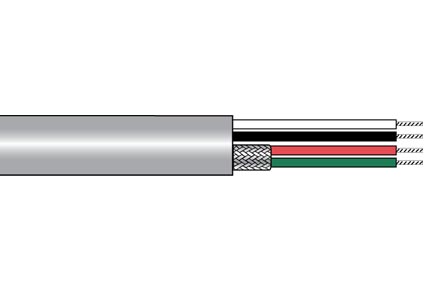

Alpha Wire 1243/5 SL001 | Communication-Control-Industrial-Cable, 5 Composite, 22_22 AWG, Unshielded, PVC Jacket, PVC Insulation, 0.195 Jacket Diameter, 0.02 Jacket Thickness, 7/30 Stranding
Regular price
$6.40
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Alpha Wire 1243/5 SL001 | Communication-Control-Industrial-Cable, 5...
Regular price
$6.40
Unit price
Description
Description
5 Conductor Multi-Conductor Cable Slate 22 AWG Braid 1000.0' (304.8m)
Key Features
- Audio systems: speakers, microphones, intercoms
- Broadcast and studio
- Data transmission: RS-232, 422, 485
- CAD/CAM
- Computer peripherals
- Business machines
- Security systems: alarms, cameras, sensors
- Control systems
- Instrumentation systems
- Point-of-sale systems
- Banking systems
Specifications
Specifications
Specifications
| Component 1 | 1 X 3 COND |
|---|---|
| Conductor | 22 (7/30) AWG TC |
| Insulation | 0.016" Wall, Nom. PVC |
| Cabling | 3 COND Cabled |
| Twists: | 6.9 Twists/foot (min) |
| Shield | TC BRAID Shield,80% Coverage, Min. |
| Component 2 | 1 X 2 COND |
| Conductor | 22 (7/30) AWG TC |
| Insulation | 0.016" Wall, Nom. PVC |
| Color Code | Alpha Wire Color Code D |
| Cabling | 2 COND Cabled |
| Twists: | 6.9 Twists/foot (min) |
| Cable Assembly | 2 Components run parallel under jacket. |
| CE: EU Directive 2011/65/EU(RoHS2): | This product complies with European Directive 2011/65/EU (RoHS Directive) of the European Parliament and of the Council of 8 June 2011. No Exemptions are required for RoHS Compliance on this item. Consult Alpha Wire's web site for RoHS C of C. |
| REACH Regulation (EC 1907/2006): | This product does not contain Substances of Very High Concern (SVHC) listed on the European Union's REACH candidate list in excess of 0.1% mass of the item. For up-to-date information, please see Alpha's REACH SVHC Declaration. |
| California Proposition 65: | The outer surface materials used in the manufacture of this part meet the requirements of California Proposition 65. |
| Packaging | Flange x Traverse x Barrel (inches) |
| Temperature Range | -20 to 75°C |
| Bend Radius | 10X Cable Diameter |
| Pull Tension | 31 Lbs, Maximum |
| Voltage Rating | 300 VRMS |
| Capacitance | 39 pf/ft @1 kHz, Nominal Conductor to Conductor |
| Ground Capacitance | 70.2 pf/ft @1 kHz, Nominal |
| Inductance | 0.2 µH/ft, Nominal |
| Conductor DCR | 16.2 ?/1000ft @20°C, Nominal |
| Component Shield DCR | 5.1 ?/1000ft @20°C, Nominal |
