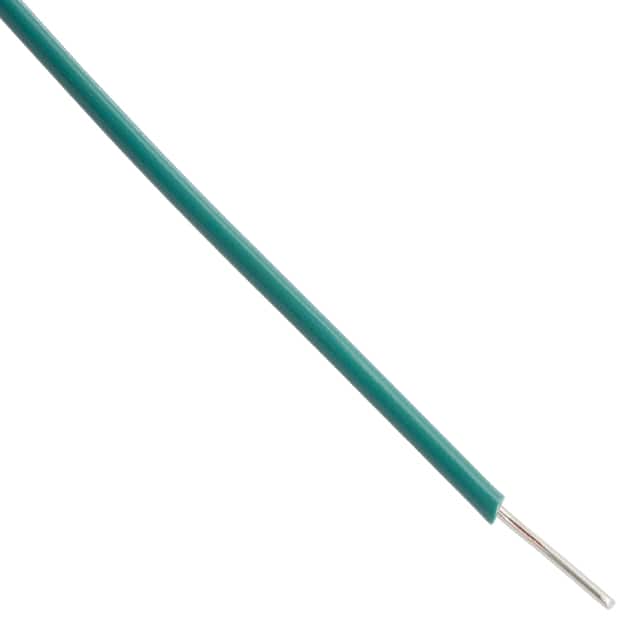

Alpha Wire 1805 GR001 | 30 AWG Hook-Up Wire Solid Green 1000.0'...
Regular price
$4.06
Unit price
Brand: Alpha Wire
|
SKU:
A1805-5
Regular price
$4.06
Unit price
Description
Description
30 AWG Hook-Up Wire Solid Green 1000.0' (304.8m)
Specifications
Specifications
Specifications
| Categories | Cables, Wires |
|---|---|
| Manufacturer | Alpha Wire |
| Packaging | Spool |
| Part Status | Active |
| Cable Type | Hook-Up |
| Wire Gauge | 30 AWG |
| Conductor Material | Copper, Silver Coated |
| Jacket (Insulation) Material | Ethylene Tetrafluoroethylene (ETFE) |
| Jacket (Insulation) Diameter | 0.020" (0.51mm) |
| Jacket (Insulation) Thickness | 0.004" (0.09mm) |
| Length | 1000.0' (304.8m) |
| Operating Temperature | -70°C ~ 150°C |
| Jacket Color | Green |
| Ratings | UL Style 1516 |
| Base Part Number | 1805 |
Environmental & Export Classifications
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
Additional Resources
| Standard Package | 1 |
|---|---|
| Other Names | 1805 GR001-ND, 1805GR001 |
