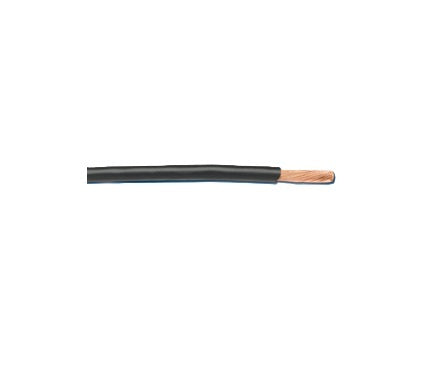

Alpha Wire 1852-8 | 28AWG (7) Stranded TNC PVC Orange/Black Spiral ...
Description
Description
The broad range of hook-up wire from Alpha means you will find the product exactly suited to your application— whether it’s as straightforward as a control cabinet in a protected environment or as specialized as a machine tool on the factory floor, a high-temperature oven, or off-road construction equipment.Our hook-up wire is available in a variety of insulations to meet your needs for temperature, ability to withstand wear and abrasion, electrical performance, or resistance to oil, solvents, and chemicals.
Specifications
Specifications
Alpha Wire - 1852-8 - Specifications
| Component 1 | 1 X 1 HOOKUP |
|---|---|
| Conductor | 28 (7/36) AWG Tinned Copper |
| Insulation | 0.010" Wall, Nom. PVC |
| Color | Orange, Black |
| Temperature Rating | 105 Degrees Centigrade (221 F) |
| Bend Radius | 10X Cable Diameter |
| Pull Tension | 1.37 Lbs, Maximum |
| Voltage Rating | 600 VRMS |
| Inductance | 0.07 ?H/ft, Nominal |
| Conductor DCR | 65 ?/1000ft @20°C, Nominal |
Documents and Downloads
Documents and Downloads
