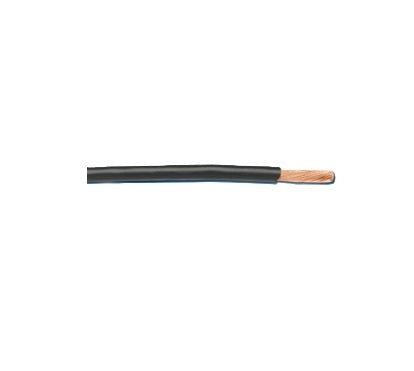

Alpha Wire 1854 BK001 | Wire, PVC, Black, 24 AWG, 0.229 mm², 1000 ft
Description
Description
The broad range of hook-up wire from Alpha means you will find the product exactly suited to your application— whether it’s as straightforward as a control cabinet in a protected environment or as specialized as a machine tool on the factory floor, a high-temperature oven, or off-road construction equipment.Our hook-up wire is available in a variety of insulations to meet your needs for temperature, ability to withstand wear and abrasion, electrical performance, or resistance to oil, solvents, and chemicals.
Specifications
Specifications
Alpha Wire - 1854 BK001 - Specifications
| Component 1 | 1 X 1 HOOKUP |
|---|---|
| Conductor | 26 (7/34) AWG Tinned Copper |
| Insulation | 0.010" Wall, Nom. PVC |
| Color | Black |
| length | 1000 ft |
| Temperature Range | -55 to 105°C |
| Bend Radius | 10X Cable Diameter |
| Pull Tension | 2.18 Lbs, Maximum |
| Voltage Rating | 600 VRMS |
| Inductance | 0.06 ?H/ft, Nominal |
| Conductor DCR | 41 ?/1000ft @20°C, Nominal |
