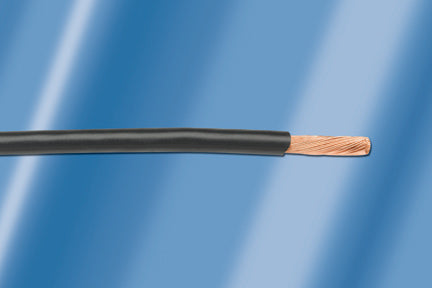

Alpha Wire 1855 WH001 | Hook-up-wire, Premium 22 AWG 600 V, 19/30 S...
Description
Description
The broad range of hook-up wire from Alpha means you will find the product exactly suited to your application— whether it’s as straightforward as a control cabinet in a protected environment or as specialized as a machine tool on the factory floor, a high-temperature oven, or off-road construction equipment. Our hook-up wire is available in a variety of insulations to meet your needs for temperature, ability to withstand wear and abrasion, electrical performance, or resistance to oil, solvents, and chemicals.
Specifications
Specifications
Alpha Wire - 1855 WH001 - Specifications
| Manufacturer Part Mumber | 1855 WH001 |
|---|---|
| Brand name | Alpha Wire |
| Component 1 | 1 X 1 HOOKUP |
| Conductor | 22 (7/30) AWG Tinned Copper |
| Insulation | 0.010" Wall, Nom. PVC |
| Temperature Range | -55 to 105°C |
| Bend Radius | 10X Cable Diameter |
| Pull Tension | 5.5 Lbs, Maximum |
| Voltage Rating | 600 V RMS |
| Inductance | 0.05 ?H/ft, Nominal |
| Conductor DCR | 16.2 ?/1000ft @20°C, Nominal |
| Conductor Material | TINNED COPPER |
| Conductor Size | 22 AWG (AMERICAN WIRE GAUGE) |
| Conductor Stranding | 7 STRANDS IN EACH CONDUCTOR |
| Insulation Color | WHITE |
| Product Type | M16878 |
| Insulation Material | PVC-POLYVINYL CHLORIDE |
| RoHS Compliant | YES |
| Mil Spec | MIL-W-16878/1 (TYPE B) |
| Temperature Rating | 105 DEGREES CENTIGRADE (221 F) |
| Shielded | Not Shielded |
| UNSPSC Code | 26121539 |
