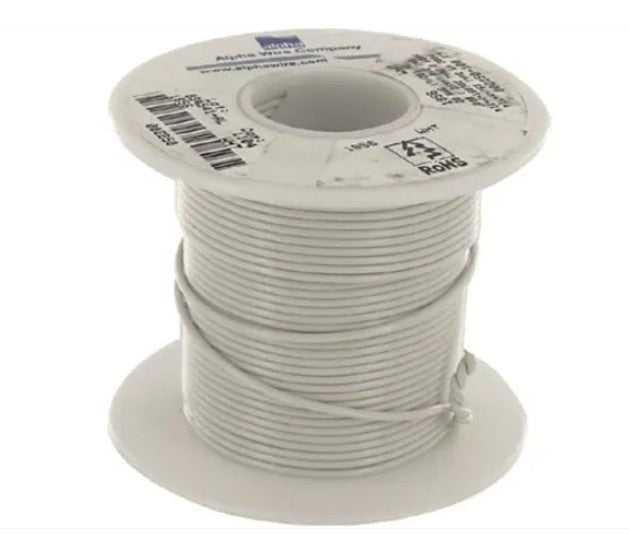

Alpha Wire 1856 WH005 | Hook-Up Wire, TC, 20 AWG, 7x28, White PVC I...
Description
Description
The broad range of hook-up wire from Alpha means you will find the product exactly suited to your application— whether it’s as straightforward as a control cabinet in a protected environment or as specialized as a machine tool on the factory floor, a high-temperature oven, or off-road construction equipment. Our hook-up wire is available in a variety of insulations to meet your needs for temperature, ability to withstand wear and abrasion, electrical performance, or resistance to oil, solvents, and chemicals.
Specifications
Specifications
Alpha Wire - 1856 WH005 - Specifications
| Conductor Material | Tinned Copper (TC) |
|---|---|
| Insulation Color | White |
| Insulation Material | Polyvinyl Chloride (PVC) |
| Insulation Thickness | 0.01 in. |
| Jacket Thickness | 0.010 (0.25) in. (mm) |
| Maximum Operating Temperature | 105 °C |
| Minimum Operating Temperature | -55 °C |
| Outer Diameter | 0.060000 in |
| Packaging | Coil |
| Standards | MIL-W-16878E |
| Stranding | 7x28 |
| Temperature, Rating | -55 to 105 °C |
| Type | Hook-Up Wire |
| Voltage Rating | 600 V |
| Wire Size | 20 AWG |
| Component 1 | 1 X 1 HOOKUP |
| Conductor | 20 (7/28) AWG Tinned Copper |
| Insulation | 0.010" Wall, Nom. PVC |
| Temperature Range | -55 to 105°C |
| Bend Radius | 10X Cable Diameter |
| Pull Tension | 8.7 Lbs, Maximum |
| Voltage Rating | 600 VRMS |
| Inductance | 0.04 ?H/ft, Nominal |
| Conductor DCR | 10.1 ?/1000ft @20°C, Nominal |
