Brand: Alpha Wire
|
SKU:
273-8023P3

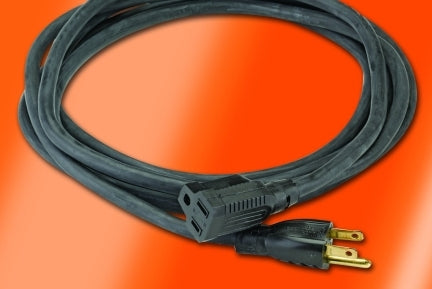

Alpha Wire 1932/3 | Manhattan-Electrical-Cables, Cords-Cordsets, 3 Conductor, 18 AWG, Unshielded, 300 V, CPE Jacket, EPDM Insulation, 0.32 Jacket Diameter
Regular price
$7.08
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Alpha Wire 1932/3 | Manhattan-Electrical-Cables, Cords-Cordsets, 3 ...
Regular price
$7.08
Unit price
Description
Description
Alpha Wire 1932/3 - CABLE COAX - 18 AWG 3 COND
Specifications
Specifications
Specifications
| Component 1 | 3 X 1 COND |
|---|---|
| Conductor | 18 (16/30) AWG BC |
| Insulation | 0.032" Wall, Nom. EPDM Rubber |
| Separator | Paper Tape, 10% Overlap, Min. |
| Cable Assembly | 3 Components Cabled |
| Twists: | 4.8 Twists/foot (min) |
| Jacket | 0.034" Wall, Nom.,Chlorinated Polyethylene (CPE) |
| Color(s) | BLACK |
| Jacket Separator | Tissue Tape, 25% Overlap, Min. |
| ALPHA WIRE-* P/N 1932/3 3C 18 AWG (0.811mm2) (UL) C(UL) TYPE SJOW 90C 300V -40C FT2CE ROHS* = Factory Code[Note: Product may have c(UL) or CSA markings depending upon plant of manufacture.] | |
| CE: EU Directive 2011/65/EU(RoHS2): | This product complies with European Directive 2011/65/EU (RoHS Directive) of the European Parliament and of the Council of 8 June 2011 and the amending Directive 2015/863/EU of 4 June 2015 . No Exemptions are required for RoHS Compliance on this item. Consult Alpha Wire's web site for RoHS C of C. |
| REACH Regulation (EC 1907/2006): | This product does not contain Substances of Very High Concern (SVHC) listed on the European Union's REACH candidate list in excess of 0.1% mass of the item. For up-to-date information, please see Alpha's REACH SVHC Declaration. |
| Packaging | Flange x Traverse x Barrel (inches) |
| Temperature Range | -40 to 90°C |
| Bend Radius | 10X Cable Diameter |
| Pull Tension | 38 Lbs, Maximum |
| Sunlight Resistance | Yes |
| Capacitance | 21.1 pf/ft @1 kHz, Nominal Conductor to Conductor |
| Inductance | 0.22 µH/ft, Nominal |
| Conductor DCR | 6.7 ?/1000ft @20°C, Nominal |
