Brand: Alpha Wire
|
SKU:
4A-1603-A

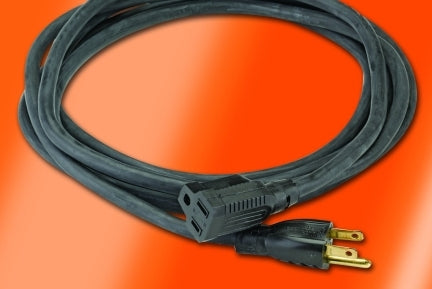

Alpha Wire 1935/3 BK003 | Manhattan-Electrical-Cables, Cords-Cordsets, 3 Conductor, 16 AWG, Unshielded, 600 V, CPE Jacket, Neoprene Insulation, 0.4 Jacket Diameter
Regular price
$6.76
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Alpha Wire 1935/3 BK003 | Manhattan-Electrical-Cables, Cords-Cordse...
Regular price
$6.76
Unit price
Description
Description
Alpha Wire 1935/3 BK003 - SO - 16-3C PORTABLE CORD PVC/NEO
Specifications
Specifications
Specifications
| Component 1 | 3 X 1 COND |
|---|---|
| Conductor | 16 (26/30) AWG BC |
| Insulation | 0.031" Wall, Nom. Neoprene |
| Separator | Paper Tape, 10% Overlap, Min. |
| Cable Assembly | 3 Components Cabled |
| Twists: | 4.8 Twists/foot (min) |
| Jacket | 0.065" Wall, Nom.,Chlorinated Polyethylene (CPE) |
| Color(s) | BLACK |
| Jacket Separator | Tissue Tape, 25% Overlap, Min. |
| ALPHA WIRE-* P/N 1935/3 3C 16 AWG (1.32mm2) (UL) C(UL) TYPE SOOW 90C 600V -40C FT2CE ROHS* = Factory Code[Note: Product may have c(UL) or CSA markings depending upon plant of manufacture.] | |
| CE: EU Directive 2011/65/EU(RoHS2): | This product complies with European Directive 2011/65/EU (RoHS Directive) of the European Parliament and of the Council of 8 June 2011 and the amending Directive 2015/863/EU of 4 June 2015 . No Exemptions are required for RoHS Compliance on this item. Consult Alpha Wire's web site for RoHS C of C. |
| REACH Regulation (EC 1907/2006): | This product does not contain Substances of Very High Concern (SVHC) listed on the European Union's REACH candidate list in excess of 0.1% mass of the item. For up-to-date information, please see Alpha's REACH SVHC Declaration. |
| Packaging | Flange x Traverse x Barrel (inches) |
| Temperature Range | -40 to 90°C |
| Bend Radius | 10X Cable Diameter |
| Pull Tension | 61 Lbs, Maximum |
| Sunlight Resistance | Yes |
| Capacitance | 39 pf/ft @1 kHz, Nominal Conductor to Conductor |
| Inductance | 0.2 µH/ft, Nominal |
| Conductor DCR | 4.1 ?/1000ft @20°C, Nominal |
