Brand: Alpha Wire
|
SKU:
A2400C-ALT

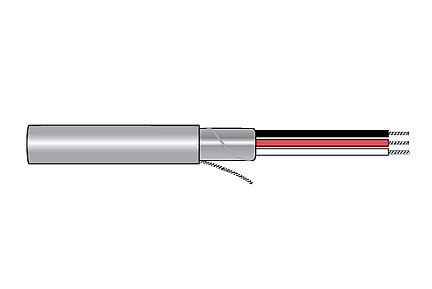

Alpha Wire 2400C SL001 | Communication-Control-Industrial-Cable, 2 Conductor, 24 AWG, Foil, 300 V, PVC Jacket, PE Insulation, 0.156 Jacket Diameter, 0.02 Jacket Thickness, 7/32 Stranding
Regular price
$1.63
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Alpha Wire 2400C SL001 | Communication-Control-Industrial-Cable, 2 ...
Regular price
$1.63
Unit price
Description
Description
2 Conductor Multi-Conductor Cable Slate 24 AWG Foil 1000.0' (304.8m)
Key Features
- Audio systems: speakers, microphones, intercoms
- Broadcast and studio
- Data transmission: RS-232, 422, 485
- CAD/CAM
- Computer peripherals
- Business machines
- Security systems: alarms, cameras, sensors
- Control systems
- Instrumentation systems
- Point-of-sale systems
- Banking systems
Specifications
Specifications
Specifications
| Component 1 | 2 X 1 COND |
|---|---|
| Conductor | 24 (7/32) AWG Tinned Copper |
| Insulation | 0.016" Wall, Nom. FRPE |
| Color Code | Alpha Wire Color Code F |
| Cable Assembly | 2 Components Cabled |
| Twists: | 8.0 Twists/foot (min) |
| Orientation: | Components to be arranged from INSIDE LAYER to OUTSIDE LAYER |
| Shield: | Alum/Mylar Tape, 25% Overlap, Min. |
| Foil Direction | Foil Facing Out |
| Drain Wire | 24 (7/32) AWG Tinned Copper |
| Jacket | 0.020" Wall, Nom.,PVC |
| Color(s) | Slate, Brown |
| ALPHA WIRE-* P/N 2400C 2C 24 AWG SHIELDED 75C (UL) TYPE CMG OR AWM 2092 ----C(UL) CMG FT4 CE ROHS* = Factory Code[Note: Product may have c(UL) or CSA markings depending upon plant of manufacture.] | |
| CE: EU Directive 2011/65/EU(RoHS2): | This product complies with European Directive 2011/65/EU (RoHS Directive) of the European Parliament and of the Council of 8 June 2011and the amending Directive 2015/863/EU of 4 June 2015 . No Exemptions are required for RoHS Compliance on this item. Consult Alpha Wire's web site for RoHS C of C. |
| California Proposition 65: | Exempt from warning labels based on the Consent Judgment. Please see Alpha's CA Prop 65 Statement for more information. |
| Packaging | Flange x Traverse x Barrel (inches) |
| Temperature Range | -20 to 75°C |
| Bend Radius | 10X Cable Diameter |
| Pull Tension | 10.6 Lbs, Maximum |
| Voltage Rating | 300 VRMS |
| Ground Capacitance | 37 pF/ft @1 kHz, Nominal |
| Characteristic Impedance | 81 ? |
| Inductance | 0.22 µH/ft, Nominal |
| Conductor DCR | 25 ?/1000ft @20°C, Nominal |
| OA Shield DCR | 19.5 ?/1000ft @20°C, Nominal |
