Brand: Alpha Wire
|
SKU:
A25122

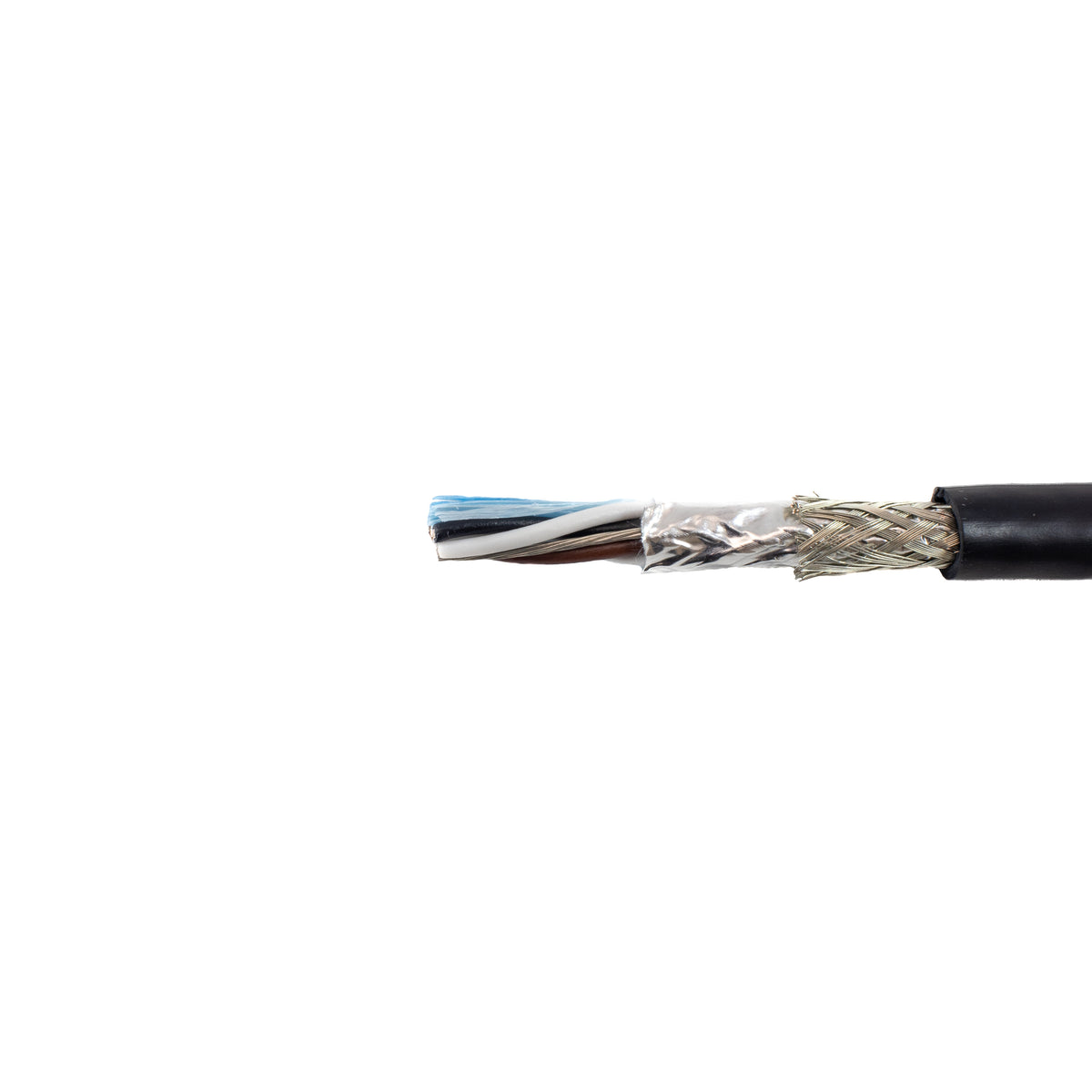

Alpha Wire 25122 BK199 | Xtra-Guard-Performance-Cable, Xtra-Guard-2, 2 Pair, 22 AWG, 300 V, PU Jacket, SR-PVC Insulation, 0.26 Jacket Diameter, 0.032 Jacket Thickness, 7/30 Stranding
Regular price
$9.45
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Alpha Wire 25122 BK199 | Xtra-Guard-Performance-Cable, Xtra-Guard-2...
Regular price
$9.45
Unit price
Description
Description
Alpha Wire 25122 BK199 - CABLE SHIELDED - 22-2P STR TNC PVC/PU AL/MY
Key Features
- Heavy-duty cable for use in industrial applications where abrasion and mechanical abuse is common
- Features a specially formulated, rugged polyurethane jacket offering three times the tear and abrasion resistance of ordinary PVC
- Provides extreme resistance to cut-through and physical damage
- Designed with moderate to high resistance to most oils, solvents, chemicals, and fuels
- Offers outstanding ultraviolet light stability in all jacket colors
- Provides exceptional protection against EMI interference when Supra-Shield is specified
- Meets NFPA Standard 79 for industrial machinery*
Specifications
Specifications
Specifications
| Component 1 | 2 X 1 PAIR |
|---|---|
| Conductor | 22 (7/30) AWG Tinned Copper |
| Insulation | 0.010" Wall, Nom. PVC, Semi Rigid |
| Color Code | Alpha Wire Color Code B |
| Pair | 2/Cond Cabled Together |
| Twists: | 8.0 Twists/foot (min) |
| Cable Assembly | 2 Components Cabled |
| Twists: | 6.0 Twists/foot (min) |
| Orientation: | Components to be arranged from INSIDE LAYER to OUTSIDE LAYER |
| Core Wrap | Nonwoven Polyester Tape, 25% Overlap, Min. |
| Shield: | A/P/A Tape, 25% Overlap, Min. |
| Drain Wire | 22 (7/30) AWG Tinned Copper |
| Braid | Tinned Copper,70% Coverage, Min. |
| Jacket | 0.032" Wall, Nom.,Polyurethane (TPU) |
| Color(s) | Slate, Black, Yellow, Orange, Blue, Green, Red, Sand Beige, White |
| CE: EU Directive 2011/65/EU(RoHS2): | This product complies with European Directive 2011/65/EU (RoHS Directive) of the European Parliament and of the Council of 8 June 2011and the amending Directive 2015/863/EU of 4 June 2015 . No Exemptions are required for RoHS Compliance on this item. Consult Alpha Wire's web site for RoHS C of C. |
| California Proposition 65: | Exempt from warning labels based on the Consent Judgment. Please see Alpha's CA Prop 65 Statement for more information. |
| Packaging | Flange x Traverse x Barrel (inches) |
| Temperature Range | -30 to 90°C |
| Bend Radius | 10X Cable Diameter |
| Pull Tension | 31 Lbs, Maximum |
| Sunlight Resistance | Yes |
| Mutual Capacitance | 31 pF/ft @1 kHz, Nominal |
| Ground Capacitance | 56 pF/ft @1 kHz, Nominal |
| Characteristic Impedance | 57 ? |
| Inductance | 0.18 µH/ft, Nominal |
| Conductor DCR | 16.6 ?/1000ft @20°C, Nominal |
| OA Shield DCR | 3.3 ?/1000ft @20°C, Nominal |
