Brand: Alpha Wire
|
SKU:
A2803/2

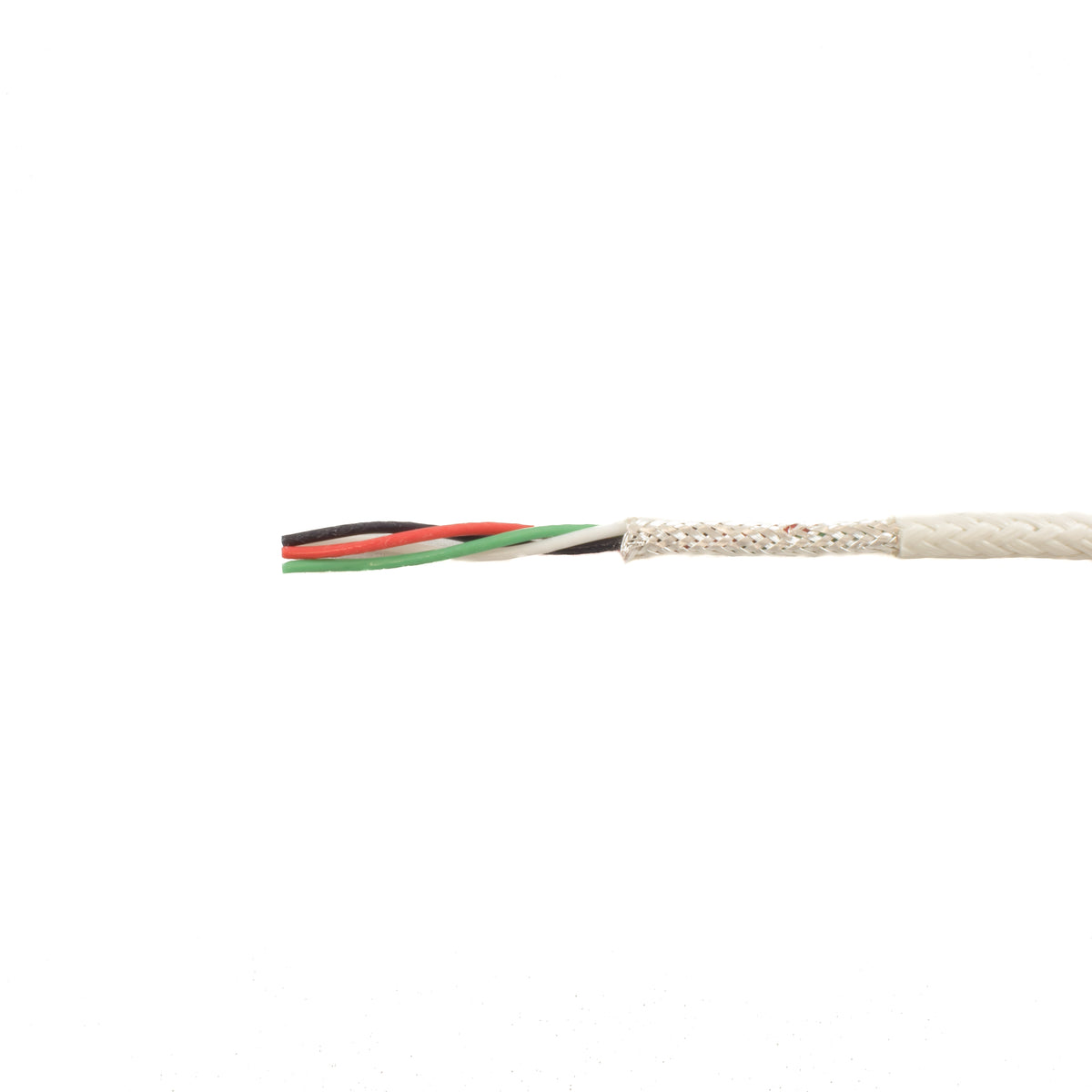

Alpha Wire 2803/2 WH001 | Communication-Control-Industrial-Cable, 2 Conductor, 12 AWG, Braid, Glass Braid Jacket, PTFE Insulation, 0.283 Jacket Diameter, 0.012 Jacket Thickness, 19/25 Stranding
Regular price
$39.17
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Alpha Wire 2803/2 WH001 | Communication-Control-Industrial-Cable, 2...
Regular price
$39.17
Unit price
Description
Description
2 Conductor Multi-Conductor Cable White 12 AWG Braid 1000.0' (304.8m)
Specifications
Specifications
Specifications
| Component 1 | 2 X 1 COND |
|---|---|
| Conductor | 12 (19/25) AWG SPC |
| Insulation | 0.012" Wall, Nom. PTFE |
| Color Code | Alpha Wire Color Code G |
| Cable Assembly | 2 Components Cabled |
| Twists: | 3.7 Twists/foot (min) |
| Shield | SPC BRAID Shield,90% Coverage, Min. |
| Jacket | 0.014" Wall, Nom.,PTFE Impregnated Fiberglass |
| Color(s) | WHITE |
| Jacket Separator | PTFE(skived) Tape, 25% Overlap, Min. |
| CE: EU Directive 2011/65/EU(RoHS2): | This product complies with European Directive 2011/65/EU (RoHS Directive) of the European Parliament and of the Council of 8 June 2011. No Exemptions are required for RoHS Compliance on this item. Consult Alpha Wire's web site for RoHS C of C. |
| REACH Regulation (EC 1907/2006): | This product does not contain Substances of Very High Concern (SVHC) listed on the European Union's REACH candidate list in excess of 0.1% mass of the item. For up-to-date information, please see Alpha's REACH SVHC Declaration. |
| California Proposition 65: | The outer surface materials used in the manufacture of this part meet the requirements of California Proposition 65. |
| Packaging | Flange x Traverse x Barrel (inches) |
| Temperature Range | -55 to 200°C |
| Bend Radius | 10X Cable Diameter |
| Pull Tension | 101 Lbs, Maximum |
| Voltage Rating | 600 VRMS |
| Ground Capacitance | 72 pf/ft @1 kHz, Nominal |
| Characteristic Impedance | 37 ? |
| Inductance | 0.14 µH/ft, Nominal |
| Conductor DCR | 1.75 ?/1000ft @20°C, Nominal |
| OA Shield DCR | 3.7 ?/1000ft @20°C, Nominal |
