Brand: Alpha Wire | SKU: A2824/3-100

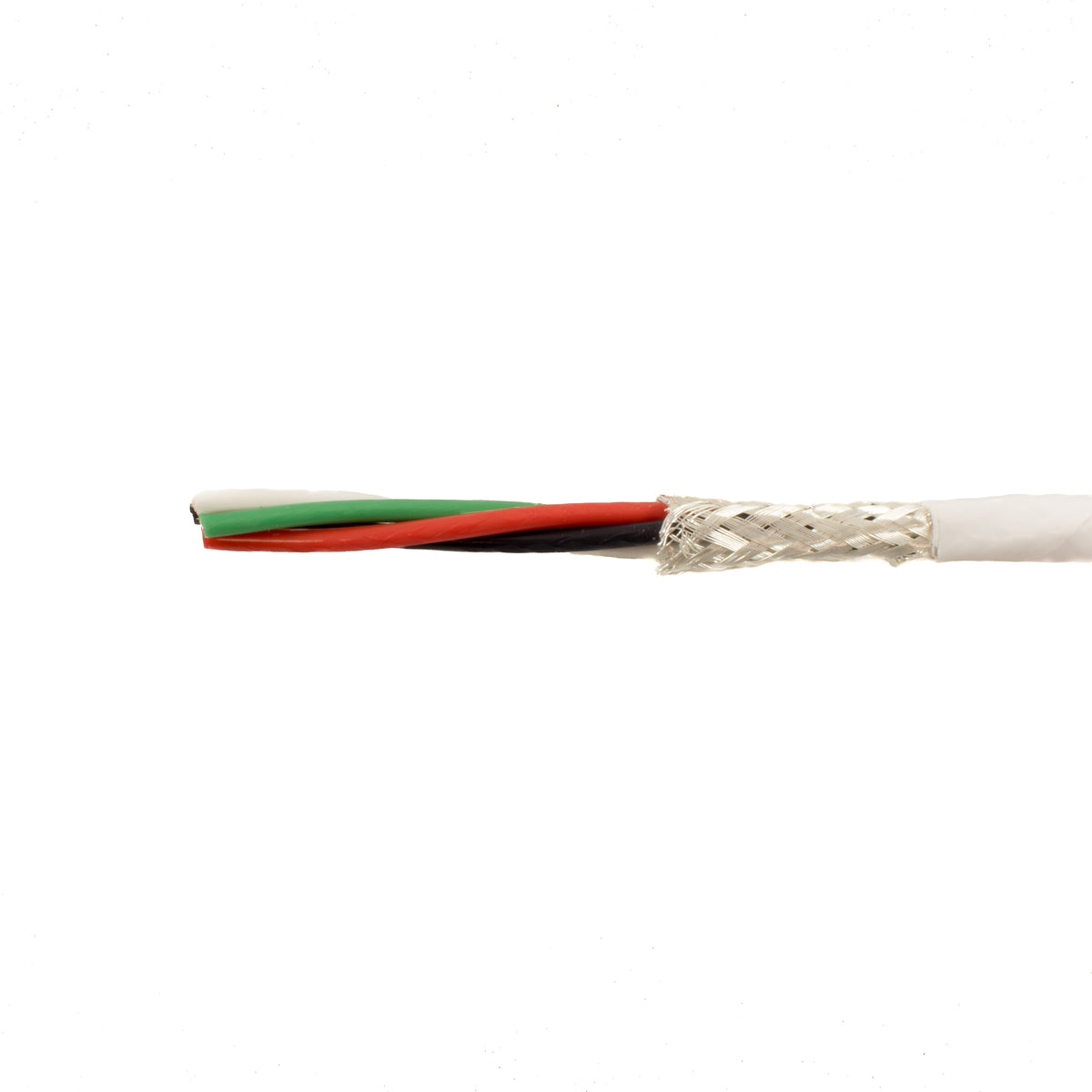

Alpha Wire 2824/3 WH005 | 22 AWG 3C SPC PTFE Shielded Cable, 90% SPC Braid, 600 V, 200°C, White, 100 ft

$38.77

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

Alpha Wire 2824/3 WH005 | 22 AWG 3C SPC PTFE Shielded Cable, 90% SPC Braid, 600 V, 200°C, White, 100 ft

Alpha Wire’s high/low temperature cables are available for temperatures ranging from -55°C to 200°C. Our expertise in high-temperature materials such as teflon will help you select the right cable to meet the demanding high-temperature requirements for control and power applications.

Specifications

Alpha Wire - 2824/3 WH005 - Specifications

Component 1	3 X 1 COND
Conductor	22 (19/34) AWG Silver Plated Copper
Insulation	0.009" Wall, Nom. PTFE
Color Code	Alpha Wire Color Code G
Cable Assembly	3 Components Cabled
Twists:	8.0 Twists/foot (min)
Shield	Silver Platted Copper BRAID Shield,90% Coverage, Min.
Color(s)	WHITE
Temperature Range	-55 to 200°C
Bend Radius	10X Cable Diameter
Voltage Rating	600 VRMS
Ground Capacitance	43 pF/ft @1 kHz, Nominal

Documents and Downloads

Alpha Wire 2824/3 WH005 Data Sheet
