Brand: Alpha Wire | SKU: A2826/2-100

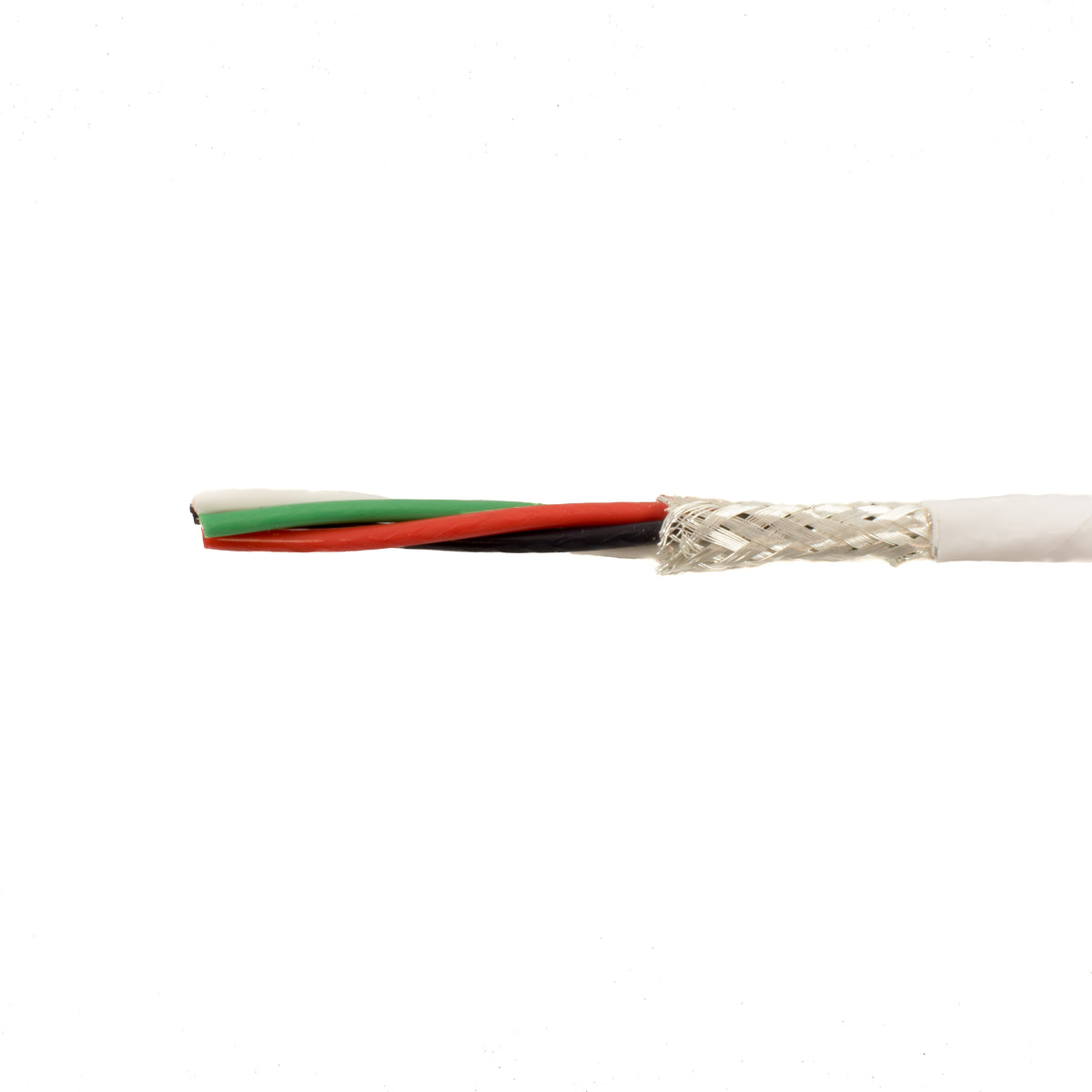

Alpha Wire 2826/2 WH005 | 16 AWG, 2-Conductor, 19 Strand Silver-Plated Copper, Silver-Plated Copper Braid Shield, PTFE Tape Jacket

$58.75

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

Alpha Wire 2826/2 WH005 | 16 AWG, 2-Conductor, 19 Strand Silver-Plated Copper, Silver-Plated Copper Braid Shield, PTFE Tape Jacket

Alpha Wire’s high/low temperature cables are available for temperatures ranging from -55°C to 200°C. Our expertise in high-temperature materials such as teflon will help you select the right cable to meet the demanding high-temperature requirements for control and power applications.

Specifications

Alpha Wire - 2826/2 WH005 - Specifications

Component 1	2 X 1 COND
Conductor	16 (19/29) AWG Silver Plated Copper
Insulation	0.012" Wall, Nom. PTFE
Color Code	Alpha Wire Color Code G
Cable Assembly	2 Components Cabled
Twists:	5.3 Twists/foot (min)
Orientation:	Components to be arranged from INSIDE LAYER to OUTSIDE LAYER
Shield	Silver Platted Copper BRAID Shield,90% Coverage, Min.
Jacket	0.012" Wall, Nom.,PTFE Tape
Temperature Range	-55 to 200°C
Bend Radius	10X Cable Diameter
Pull Tension	43 Lbs, Maximum
Voltage Rating	600 VRMS

Documents and Downloads

Alpha Wire 2826/2 WH005 Data Sheet
