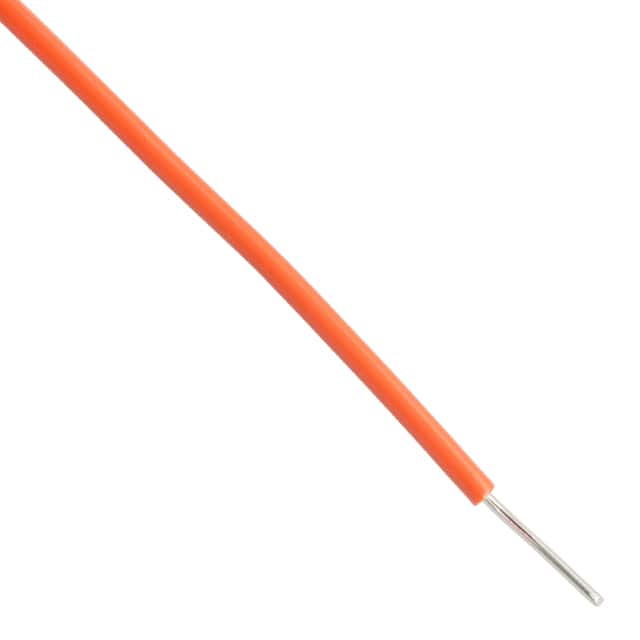

Alpha Wire 2841/1 OR001 | 30 AWG Hook-Up Wire Solid Orange 250V 100...
Regular price
$2.70
Unit price
Brand: Alpha Wire
|
SKU:
A2841/1-3
Regular price
$2.70
Unit price
Description
Description
30 AWG Hook-Up Wire Solid Orange 250V 1000.0' (304.8m)
Specifications
Specifications
Specifications
| Categories | Cables, Wires |
|---|---|
| Manufacturer | Alpha Wire |
| Series | MIL-W-16878E Type ET |
| Packaging | Spool |
| Part Status | Active |
| Cable Type | Hook-Up |
| Wire Gauge | 30 AWG |
| Conductor Material | Copper, Silver Coated |
| Jacket (Insulation) Material | Polytetrafluoroethylene (PTFE) |
| Jacket (Insulation) Diameter | 0.022" (0.55mm) |
| Jacket (Insulation) Thickness | 0.006" (0.15mm) |
| Length | 1000.0' (304.8m) |
| Voltage | 250V |
| Operating Temperature | -60°C ~ 200°C |
| Jacket Color | Orange |
| Base Part Number | 2841/1 |
Environmental & Export Classifications
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
Additional Resources
| Standard Package | 1 |
|---|---|
| Other Names | 2841/1 OR001-ND, A2841/1A-1000 |
