Alpha Wire 2842/1 WH001 | 28 AWG Hook-Up Wire Solid White 250V 1000...
Regular price
$3.00
Unit price
Brand: Alpha Wire
|
SKU:
A2842/1-9
Regular price
$3.00
Unit price
Description
Description

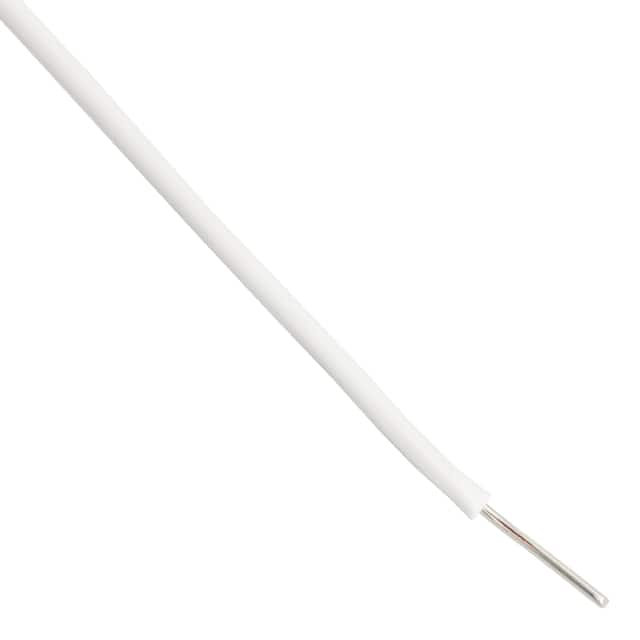

28 AWG Hook-Up Wire Solid White 250V 1000.0' (304.8m)
Specifications
Specifications
Specifications
| Categories | Cables, Wires |
|---|---|
| Manufacturer | Alpha Wire |
| Series | MIL-W-16878E Type ET |
| Packaging | Spool |
| Part Status | Active |
| Cable Type | Hook-Up |
| Wire Gauge | 28 AWG |
| Conductor Material | Copper, Silver Coated |
| Jacket (Insulation) Material | Polytetrafluoroethylene (PTFE) |
| Jacket (Insulation) Diameter | 0.025" (0.63mm) |
| Jacket (Insulation) Thickness | 0.006" (0.15mm) |
| Length | 1000.0' (304.8m) |
| Voltage | 250V |
| Operating Temperature | -60°C ~ 200°C |
| Jacket Color | White |
| Notification | May contain up to 3 splices, minimum length per piece is 100' |
| Base Part Number | 2842/1 |
Environmental & Export Classifications
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
Additional Resources
| Standard Package | 1 |
|---|---|
| Other Names | 2842/1 WH001-ND, A2842/1W-1000 |
