Brand: Alpha Wire
|
SKU:
A2843/19-0

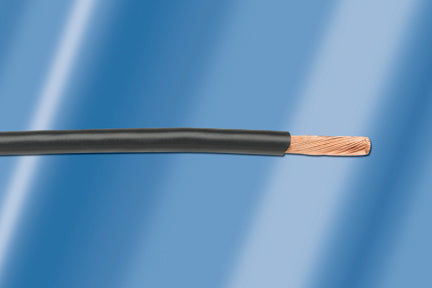

Alpha Wire 2843/19 BK001 | Hook-Up-Wire, Premium, 26 AWG, 250 V, 19/38 Stranding, PTFE Insulation, -60 to 200 Degrees, 0.031 Diameter Insulation, 0.006 Insulation Thickness
Regular price
$3.00
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Alpha Wire 2843/19 BK001 | Hook-Up-Wire, Premium, 26 AWG, 250 V, 19...
Regular price
$3.00
Unit price
Description
Description
26 AWG Hook-Up Wire 19/38 Black 250V 1000.0' (304.8m)
Specifications
Specifications
Specifications
| Component 1 | 1 X 1 HOOKUP |
|---|---|
| Conductor | 26 (19/38) AWG SPC |
| Insulation | 0.006" Wall, Nom. PTFE |
| Color(s) | WHITE, BLACK, RED, GREEN, YELLOW, BLUE, BROWNORANGE, SLATE, VIOLET |
| EU Directive 2011/65/EU(RoHS2): | All materials used in the manufacture of this part are in compliance with European Directive 2011/65/EU regarding the restriction of use of certain hazardous substances in electrical and electronic equipment. Consult Alpha Wire's web site for RoHS C of C. |
| REACH Regulation (EC 1907/2006): | This product does not contain Substances of Very High Concern (SVHC) listed on the European Union's REACH candidate list in excess of 0.1% mass of the item. For up-to-date information, please see Alpha's REACH SVHC Declaration. |
| California Proposition 65: | The outer surface materials used in the manufacture of this part meet the requirements of California Proposition 65. |
| Packaging | Flange x Traverse x Barrel (inches) |
| Temperature Range | -60 to 200°C |
| Bend Radius | 10X Cable Diameter |
| Pull Tension | 2.39 Lbs, Maximum |
| Voltage Rating | 250 VRMS |
| Conductor DCR | 35 ?/1000ft @20°C, Nominal |
