Description
Description
The broad range of hook-up wire from Alpha means you will find the product exactly suited to your application— whether it’s as straightforward as a control cabinet in a protected environment or as specialized as a machine tool on the factory floor, a high-temperature oven, or off-road construction equipment.Our hook-up wire is available in a variety of insulations to meet your needs for temperature, ability to withstand wear and abrasion, electrical performance, or resistance to oil, solvents, and chemicals.
Specifications
Specifications

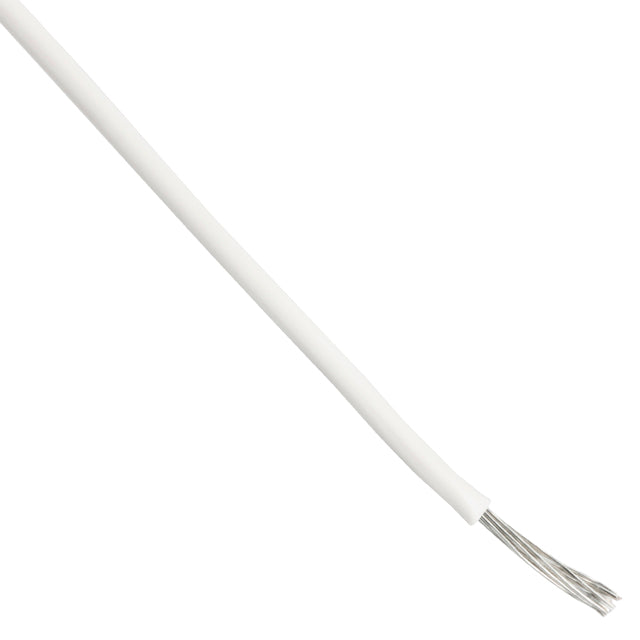

Alpha Wire - 2845/7 WH001 - Specifications
| Component 1 | 1 X 1 HOOKUP |
|---|---|
| Conductor | 22 (7/30) AWG Silver Plated Copper |
| Insulation | 0.006" Wall, Nom. PTFE |
| Color | White |
| length | 1000 Ft |
| Temperature Range | -60 to 200°C |
| Bend Radius | 10X Cable Diameter |
| Pull Tension | 5.5 Lbs, Maximum |
| Voltage Rating | 250 VRMS |
| Inductance | 0.04 ?H/ft, Nominal |
| Conductor DCR | 15.1 ?/1000ft @20°C, Nominal |
