Brand: Alpha Wire
|
SKU:
A297

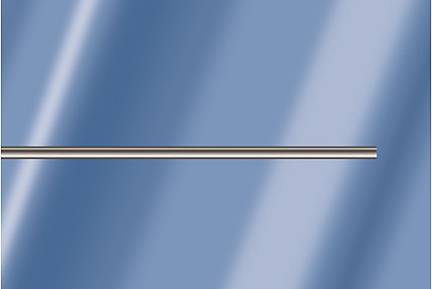

Alpha Wire 297 SV001 | Hook-Up-Wire, Bus-Bar, 20 AWG, 0.032 Diameter Conductor
Regular price
$1.46
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Alpha Wire 297 SV001 | Hook-Up-Wire, Bus-Bar, 20 AWG, 0.032 Diamete...
Regular price
$1.46
Unit price
Description
Description
20 AWG Bus Bar Wire Solid None (Non-Insulated) 1000.0' (304.8m)
Specifications
Specifications
Specifications
| Component 1 | 1 X 1 BUSBAR |
|---|---|
| Conductor | 20 (SOLID) AWG Tinned Copper |
| EU Directive 2011/65/EU(RoHS2): | All materials used in the manufacture of this part are in compliance with European Directive 2011/65/EU and the amending Directive 2015/863/EU of 4 June 2015 regarding the restriction of use of certain hazardous substances in electrical and electronic equipment. Consult Alpha Wire's web site for RoHS C of C. |
| REACH Regulation (EC 1907/2006): | This product does not contain Substances of Very High Concern (SVHC) listed on the European Union's REACH candidate list in excess of 0.1% mass of the item. For up-to-date information, please see Alpha's REACH SVHC Declaration. |
| Packaging | Flange x Traverse x Barrel (inches) |
| Temperature Range | 0 to 200°C |
| Bend Radius | 10X Cable Diameter |
| Copper Weight | 3.1 Lbs/1000Ft |
| Cable Weight | 3.1 Lbs/1000Ft |
| Conductor DCR | 10.5 ?/1000ft @20°C, Nominal |
