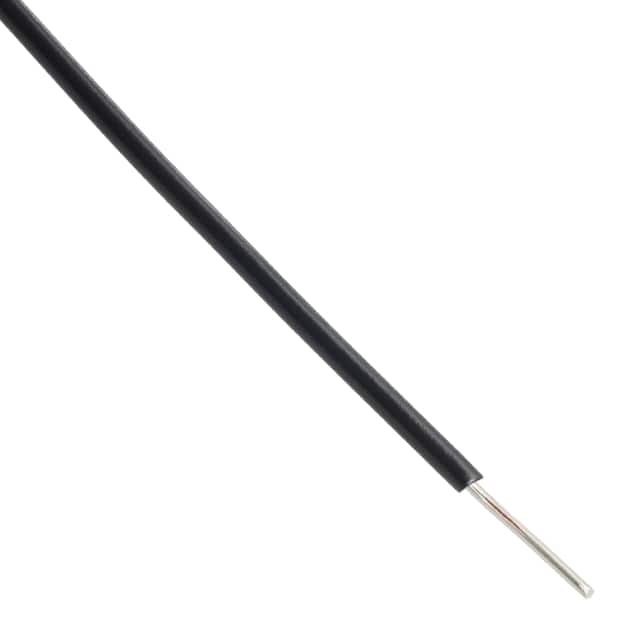

Alpha Wire 3051/1 BK001 | 22 AWG Hook-Up Wire Solid Black 300V 1000...
Regular price
$1.46
Unit price
Brand: Alpha Wire
|
SKU:
A3051/1-0
Regular price
$1.46
Unit price
Description
Description
22 AWG Hook-Up Wire Solid Black 300V 1000.0' (304.8m)
Specifications
Specifications
Specifications
| Categories | Cables, Wires |
|---|---|
| Manufacturer | Alpha Wire |
| Packaging | Spool |
| Part Status | Active |
| Cable Type | Hook-Up |
| Wire Gauge | 22 AWG |
| Conductor Material | Copper, Tinned |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket (Insulation) Diameter | 0.057" (1.45mm) |
| Jacket (Insulation) Thickness | 0.016" (0.41mm) |
| Length | 1000.0' (304.8m) |
| Voltage | 300V |
| Operating Temperature | -40°C ~ 105°C |
| Jacket Color | Black |
| Ratings | ISO 10993, UL Style 1007/1569 |
| Features | Biological Compatibility |
| Base Part Number | 3051/1 |
Environmental & Export Classifications
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
Additional Resources
| Standard Package | 1 |
|---|---|
| Other Names | 3051/1 BK001-ND, A30511B-1000 |
