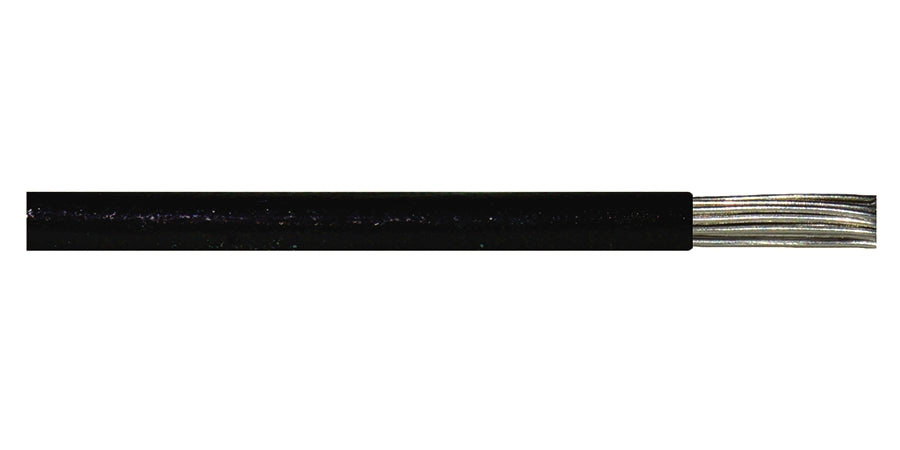

Alpha Wire 3053 BK001 | Hook Up Wire, 20 AWG, 1000 Feet, Black
Description
Description
The broad range of hook-up wire from Alpha means you will find the product exactly suited to your application— whether it’s as straightforward as a control cabinet in a protected environment or as specialized as a machine tool on the factory floor, a high-temperature oven, or off-road construction equipment. Our hook-up wire is available in a variety of insulations to meet your needs for temperature, ability to withstand wear and abrasion, electrical performance, or resistance to oil, solvents, and chemicals.
Specifications
Specifications
Alpha Wire - 3053 BK001 - Specifications
| Manufacturer Part Mumber | 3053 BK001 |
|---|---|
| Brand name | Alpha Wire |
| Component 1 | 1 X 1 HOOKUP |
| Conductor | 20 (10/30) AWG Tinned Copper |
| Insulation | 0.016" Wall, Nom. PVC |
| Temperature Range | -40 to 105°C |
| Bend Radius | 10X Cable Diameter |
| Pull Tension | 7.9 Lbs, Maximum |
| Voltage Rating | 300 V RMS |
| Inductance | 0.05 ?H/ft, Nominal |
| Conductor DCR | 11.4 ?/1000ft @20°C, Nominal |
| Conductor Material | Tinned Copper |
| Conductor Size | 20 Awg (American Wire Gauge) |
| Conductor Stranding | 10 Strands In Each Conductor |
| Insulation Color | Black |
| Product Type | Ul Styles 1000-1999 |
| Insulation Material | Pvc-polyvinyl Chloride |
| Rohs Compliant | Yes |
| Temperature Rating | 80 Degrees Centigrade (176 F) |
| Ul Style | Ul Type Awm, Style 1007 |
| Shielded | Not Shielded |
| UNSPSC Code | 26121539 |
