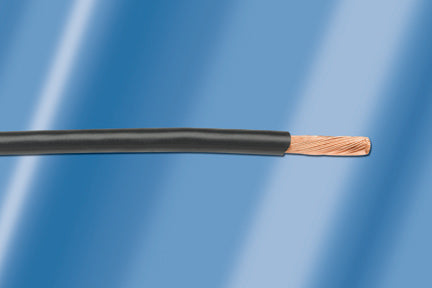

Alpha Wire 3075 | Hook-up-wire, Premium 18 Awg 600 V, 16/30 Stranding, PVC Insulation -20 To 105 Degrees
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Alpha Wire 3075 | Hook-up-wire, Premium 18 Awg 600 V, 16/30 Strandi...
Description
Description
The broad range of hook-up wire from Alpha means you will find the product exactly suited to your application— whether it’s as straightforward as a control cabinet in a protected environment or as specialized as a machine tool on the factory floor, a high-temperature oven, or off-road construction equipment. Our hook-up wire is available in a variety of insulations to meet your needs for temperature, ability to withstand wear and abrasion, electrical performance, or resistance to oil, solvents, and chemicals.
Specifications
Specifications
Alpha Wire - 3075 - Specifications
| Manufacturer Part Mumber | 3075 |
|---|---|
| Brand name | Alpha Wire |
| Component 1 | 1 X 1 HOOKUP |
| Conductor | 18 (16/30) AWG Tinned Copper |
| Insulation | 0.032" Wall, Nom. PVC |
| Temperature Range | -40 to 105°C |
| Bend Radius | 5X Cable Diameter |
| Pull Tension | 12.6 Lbs, Maximum |
| Voltage Rating | 600 V RMS |
| Inductance | 0.07 ?H/ft, Nominal |
| Conductor DCR | 7 ?/1000ft @20°C, Nominal |
