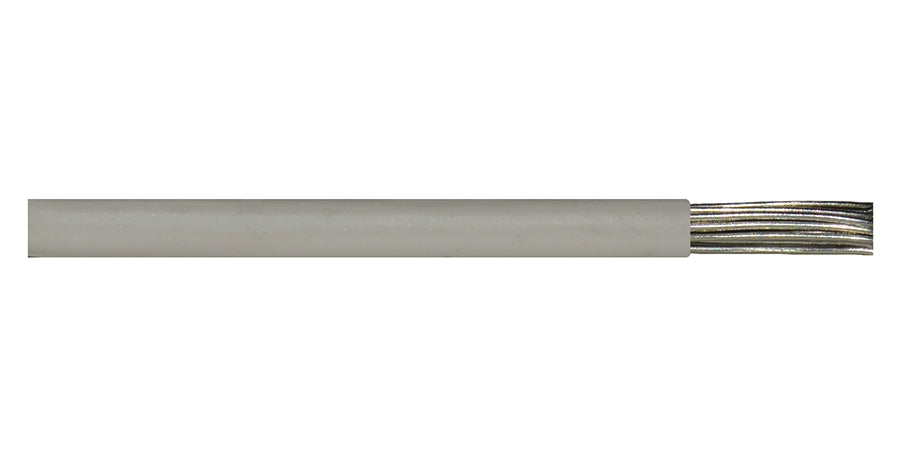

Alpha Wire 3077 WH001 | UL 1015 16 26 Stranded TNC PVC White Dye BRN CSA TEW
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Alpha Wire 3077 WH001 | UL 1015 16 26 Stranded TNC PVC White Dye BR...
Description
Description
The broad range of hook-up wire from Alpha means you will find the product exactly suited to your application— whether it’s as straightforward as a control cabinet in a protected environment or as specialized as a machine tool on the factory floor, a high-temperature oven, or off-road construction equipment. Our hook-up wire is available in a variety of insulations to meet your needs for temperature, ability to withstand wear and abrasion, electrical performance, or resistance to oil, solvents, and chemicals.
Specifications
Specifications
Alpha Wire - 3077 WH001 - Specifications
| Manufacturer Part Mumber | 3077 WH001 |
|---|---|
| Brand name | Alpha Wire |
| Component 1 | 1 X 1 HOOKUP |
| Conductor | 16 (26/30) AWG Tinned Copper |
| Insulation | 0.032" Wall, Nom. PVC |
| Temperature Range | -40 to 105°C |
| Bend Radius | 5X Cable Diameter |
| Pull Tension | 20.4 Lbs, Maximum |
| Voltage Rating | 600 V RMS |
| Inductance | 0.06 ?H/ft, Nominal |
| Conductor DCR | 4.4 ?/1000ft @20°C, Nominal |
| Conductor Material | Tinned Copper |
| Conductor Size | 16 Awg (American Wire Gauge) |
| Insulation Color | White |
| Conductor Stranding | 26 Strands In Each Conductor |
| Product Type | Ul Styles 1000-1999 |
| Insulation Material | Pvc-polyvinyl Chloride |
| Rohs Compliant | Yes |
| Temperature Rating | 105 Degrees Centigrade (221 F) |
| Ul Style | Ul Type Awm, Style 1015 |
| Shielded | Not Shielded |
| UNSPSC Code | 26121539 |
