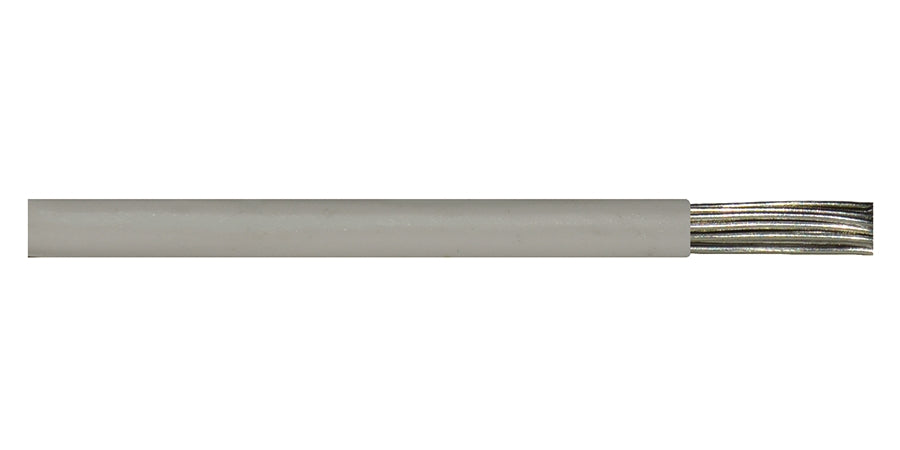

Alpha Wire 3080 WH001 | Hook Up Wire, 12AWG, 1000 FT, White
Description
Description
The broad range of hook-up wire from Alpha means you will find the product exactly suited to your application— whether it’s as straightforward as a control cabinet in a protected environment or as specialized as a machine tool on the factory floor, a high-temperature oven, or off-road construction equipment.Our hook-up wire is available in a variety of insulations to meet your needs for temperature, ability to withstand wear and abrasion, electrical performance, or resistance to oil, solvents, and chemicals.
Specifications
Specifications
Alpha Wire - 3080 WH001 - Specifications
| Component 1 | 1 X 1 HOOKUP |
|---|---|
| Conductor Stranding | 65 Strands In Each Conductor |
| Conductor Size | 12 Awg (American Wire Gauge) |
| Insulation Color | White |
| Insulation Material | Pvc-polyvinyl Chloride |
| Product Type | UL Styles 1000-1999 |
| Shielded | Not Shielded |
| Temperature Rating | 105 Degrees Centigrade (221 F) |
| Ul Style | Ul Type Awm, Style 1015 |
| UNSPSC Code | 26121539 |
| Temperature Range | -40 to 105°C |
| Bend Radius | 5X Cable Diameter |
| Pull Tension | 51 Lbs, Maximum |
| Voltage Rating | 600 VRMS |
| Inductance | 0.05 ?H/ft, Nominal |
| Conductor DCR | 1.75 ?/1000ft @20°C, Nominal |
