Brand: Alpha Wire
|
SKU:
A3131816

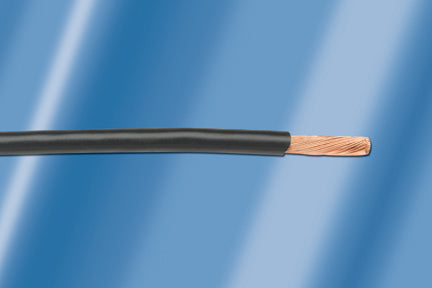

Alpha Wire 3131816 TN001 | Lead Wire/Bus Bar 18, 19/30, 0.011, 250C, 600Vtggt/UL 1000 ft.
Regular price
$3.03
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Alpha Wire 3131816 TN001 | Lead Wire/Bus Bar 18, 19/30, 0.011, 250C...
Regular price
$3.03
Unit price
Description
Description
18 AWG Hook-Up, Shielded Wire 19/30 Tan 600V 1000.0' (304.8m)
Specifications
Specifications
Specifications
| Component 1 | 1 X 1 HOOKUP |
|---|---|
| Conductor | 18 (19/30) AWG NPC |
| Insulation | 0.016" Wall, Nom. PTFE TAPE |
| Color(s) | WHITE |
| Jacket | 0.005" Wall, Nom.,PTFE Impregnated Fiberglass |
| Color(s) | NATURAL |
| EU Directive 2011/65/EU(RoHS2): | All materials used in the manufacture of this part are in compliance with European Directive 2011/65/EU regarding the restriction of use of certain hazardous substances in electrical and electronic equipment. Consult Alpha Wire's web site for RoHS C of C. |
| REACH Regulation (EC 1907/2006): | This product does not contain Substances of Very High Concern (SVHC) listed on the European Union's REACH candidate list in excess of 0.1% mass of the item. For up-to-date information, please see Alpha's REACH SVHC Declaration. |
| California Proposition 65: | The outer surface materials used in the manufacture of this part meet the requirements of California Proposition 65. |
| Packaging | Flange x Traverse x Barrel (inches) |
| Temperature Range | -55 to 250°C |
| Bend Radius | 10X Cable Diameter |
| Pull Tension | 12.6 Lbs, Maximum |
| Voltage Rating | 600 VRMS |
