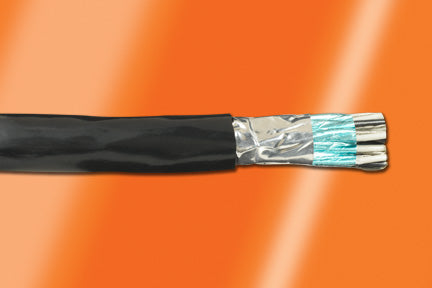

Alpha Wire 3248 SL002 | Communication and Control Cable, PVC Jacket 600V 105C ROHS 500FT
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Alpha Wire 3248 SL002 | Communication and Control Cable, PVC Jacket...
Description
Description
Our line-up of standard communication and control cables gives you maximum choice and fewer tradeoffs. By offering you a comprehensive collection of insulation/jacketing materials, shielding options, and conductor counts, you can easily select the cable that meets your most demanding needs. We have cables that go beyond the ordinary to satisfy rigorous requirements of EMI performance, transmission distances, flexibility, and temperature extremes.
Alpha Wire - 3248 SL002 - Features
- Audio systems: speakers, microphones, intercoms
- Broadcast and studio
- Data transmission: RS-232, 422, 485
- CAD/CAM
- Computer peripherals
- Business machines
- Security systems: alarms, cameras, sensors
Specifications
Specifications
Alpha Wire - 3248 SL002 - Specifications
| Conductor Count | 4 CONDUCTORS |
|---|---|
| Conductor Material | TINNED COPPER |
| Conductor Size | 16 AWG (AMERICAN WIRE GAUGE) |
| Conductor Type | STRANDED CONDUCTOR |
| Fire Rating | GENERAL PURPOSE |
| Insulation Material | PVC/NYL-POLYVINYL CHLORIDE/NYLON |
| Jacket Material | PVC-POLYVINYL CHLORIDE |
| Screen/Shield Type | BRAID SHIELDED |
| Screen/Shield | YES |
| Shield Construction | OVERALL SHIELD & DRAIN |
| UNSPSC Code | 26121613 |
