Brand: Alpha Wire
|
SKU:
A3467C

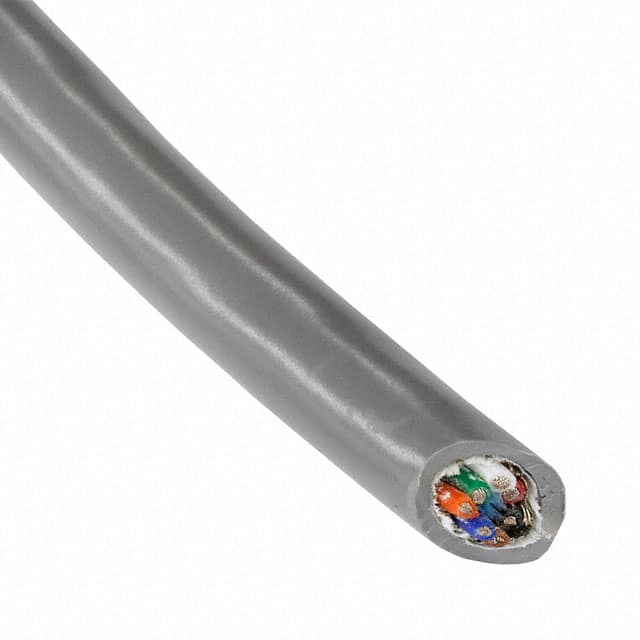

Alpha Wire 3467C SL001 | 7 Conductor Multi-Conductor Cable Slate 28 AWG Foil, Braid 1000.0' (304.8m)
Regular price
$7.08
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Alpha Wire 3467C SL001 | 7 Conductor Multi-Conductor Cable Slate 28...
Regular price
$7.08
Unit price
Brand: Alpha Wire
|
SKU:
A3467C
Alpha Wire 3467C SL001 | 7 Conductor Multi-Conductor Cable Slate 28 AWG Foil, Braid 1000.0' (304.8m)
Regular price
$7.08
Unit price
Shipping calculated at checkout.
Description
Description
7 Conductor Multi-Conductor Cable Slate 28 AWG Foil, Braid 1000.0' (304.8m)
Specifications
Specifications
Specifications
| Categories | Cables, Wires |
|---|---|
| Manufacturer | Alpha Wire |
| Packaging | Spool |
| Part Status | Active |
| Cable Type | Multi-Conductor |
| Number of Conductors | 7 |
| Wire Gauge | 7/36 |
| Conductor Material | Copper, Tinned |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket (Insulation) Diameter | 0.202" (5.13mm) |
| Shield Type | Foil, Braid |
| Length | 1000.0' (304.8m) |
| Jacket Color | Slate |
| Features | Drain Wire |
| Voltage | 300V |
| Operating Temperature | -20°C ~ 80°C |
| Usage | Communication, Control |
| Jacket (Insulation) Thickness | 0.0350" (0.889mm) |
| Conductor Insulation | Poly-Vinyl Chloride (PVC) |
| Shield Material | Aluminum; Copper, Tinned |
| Shield Coverage | 100%, 65% |
| Base Part Number | 3467C |
Environmental & Export Classifications
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
Additional Resources
| Standard Package | 1 |
|---|---|
| Other Names | 3467C-1000, 3467CSL001, A3467C-1000 |
