Brand: Alpha Wire
|
SKU:
A3530/7
Alpha Wire 3530/7 MC005 | Hook-Up-Wire, Ribbon, 22 AWG, 10 Element, 150_600 V, 7/30 Stranding, PVC Insulation, -55 to 105 Degrees, 0.5 x 0.05 Diameter Insulation, 0.01 Insulation Thickness
Regular price
$8.61
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Alpha Wire 3530/7 MC005 | Hook-Up-Wire, Ribbon, 22 AWG, 10 Element,...
Regular price
$8.61
Unit price
Description
Description

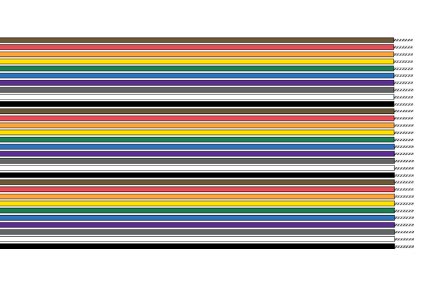

Flat Ribbon Cable Multiple 10 Conductors 0.050" (1.27mm) Flat Cable 100.0' (30.48m)
Specifications
Specifications
Specifications
| Component 1 | 10 X 1 COND |
|---|---|
| Conductor | 22 (7/30) AWG TC |
| Insulation | 0.010" Wall, Nom. PVC |
| Cable Assembly | 10 Components assembled parallel. |
| EU Directive 2011/65/EU(RoHS2): | All materials used in the manufacture of this part are in compliance with European Directive 2011/65/EU regarding the restriction of use of certain hazardous substances in electrical and electronic equipment. Consult Alpha Wire's web site for RoHS C of C. |
| REACH Regulation (EC 1907/2006): | This product does not contain Substances of Very High Concern (SVHC) listed on the European Union's REACH candidate list in excess of 0.1% mass of the item. For up-to-date information, please see Alpha's REACH SVHC Declaration. |
| California Proposition 65: | The outer surface materials used in the manufacture of this part meet the requirements of California Proposition 65. |
| Packaging | Flange x Traverse x Barrel (inches) |
| Temperature Range | -55 to 105°C |
| Bend Radius | 10X Cable Diameter |
| Pull Tension | 55 Lbs, Maximum |
| Voltage Rating | 600 VRMS |
| Inductance | 0.18 µH/ft, Nominal |
| Conductor DCR | 16.2 ?/1000ft @20°C, Nominal |
