Description
Description

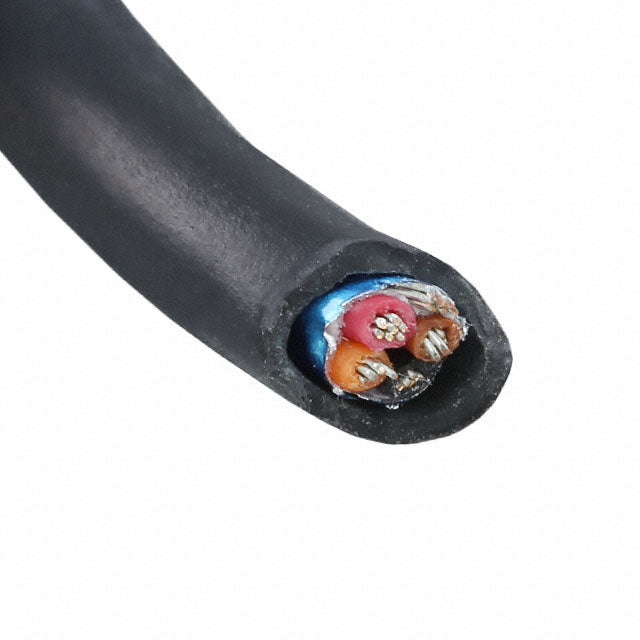

Alpha Wire 45430/4 BK199 | Xtra-Guard 4 - Handles Extreme Hot And Cold Temperatures
Alpha Wire - 45430/4 BK199 - Features
- Extended-temperature cable with a temperature range from -50°C to +125°C
- Features a high-performance TPE insulation and jacket offering three times the low-temperature flexibility of ordinary PVC
- Outstanding ultraviolet light stability in all jacket colors
- UL Rated TC 600 V and PLTC 300 V for cable tray applications (except 24 AWG)
- Pennsylvania Bureau Deep Mining Safety approved for mine-wide monitoring systems
- Provides exceptional protection against EMI interference when Supra-Shield is specified
Specifications
Specifications
Alpha Wire - 45430/4 BK199 - Specifications
| Component 1 | 4 X 1 COND |
|---|---|
| Conductor | 18 (16/30) AWG Tinned Copper |
| Insulation | 0.032" Wall, Nom. TPE |
| Cable Assembly | 4 Components Cabled |
| Twists | 3.0 Twists/foot (min) |
| Orientation | Components to be arranged from Inside Layer to Outside Layer |
| Core Wrap | Nonwoven Polyester Tape, 20% Overlap, Min. |
| Shield | Alum/Mylar Tape, 20% Overlap, Min. |
| Drain Wire | 18 (16/30) AWG Tinned Copper |
