Brand: Alpha Wire
|
SKU:
A5206C

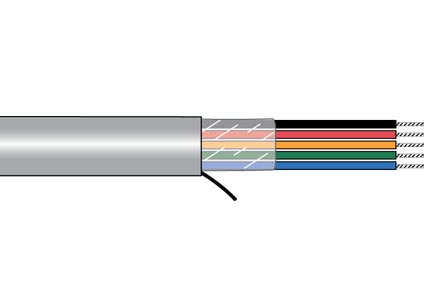

Alpha Wire 5206C SL001 | Xtra-Guard 1 24AWG 7/32 37C Unshield 1000 ft.
Regular price
$33.95
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Alpha Wire 5206C SL001 | Xtra-Guard 1 24AWG 7/32 37C Unshield 1000 ft.
Regular price
$33.95
Unit price
Description
Description
37 Conductor Multi-Conductor Cable Slate 24 AWG 1000.0' (304.8m)
Key Features
- High-performance cable for general-purpose applications
- Features a unique, premium-grade PVC insulation and jacket for Easier routing of cable in small spaces
- Provides resistance to oils per UL Oil Res I (60C OIL RES) and Class 43
- UL SUN RES
- Designed for use in ambient temperatures up to 105 ° C
- Temperature range of -35 ° C to + 105 ° C (SR-PVC) and -30 ° C to + 105 ° C (PVC)
- Provides exceptional protection contre EMI interference When Supra-Shield is specified
Specifications
Specifications
Specifications
| Component 1 | 37 X 1 COND |
|---|---|
| Conductor | 24 (7/32) AWG Tinned Copper |
| Insulation | 0.010" Wall, Nom. PVC, Semi Rigid |
| Color Code | Alpha Wire Color Code E |
| Cable Assembly | 37 Components Cabled |
| Twists: | 3.4 Twists/foot (min) |
| Orientation: | Components to be arranged from INSIDE LAYER to OUTSIDE LAYER |
| Core Wrap | Nonwoven Polyester Tape, 25% Overlap, Min. |
| Jacket | 0.063" Wall, Nom.,PVC |
| Color(s) | Slate, Black, Yellow, Orange, Blue, Green, Red, Sand Beige, White |
| Ripcord | 1 End 810 Denier Nylon |
| ALPHA WIRE-* P/N 5206C 37C 24 AWG XTRAGUARD(R) 1 (UL) TYPE CM 105C OR AWM 2343 80C300V OR AWM 21895 105C 300V SUN RES 60C OIL VW-1--- LLXXXXXX CSA 105C TYPE CMG FT4 CEROHS (SEQ FOOTAGE)* = Factory Code[Note: Product may have c(UL) or CSA markings depending upon plant of manufacture.] | |
| CE: EU Directive 2011/65/EU(RoHS2): | This product complies with European Directive 2011/65/EU (RoHS Directive) of the European Parliament and of the Council of 8 June 2011and the amending Directive 2015/863/EU of 4 June 2015 . No Exemptions are required for RoHS Compliance on this item. Consult Alpha Wire's web site for RoHS C of C. |
| REACH Regulation (EC 1907/2006): | This product does not contain Substances of Very High Concern (SVHC) listed on the European Union's REACH candidate list in excess of 0.1% mass of the item. For up-to-date information, please see Alpha's REACH SVHC Declaration. |
| California Proposition 65: | Exempt from warning labels based on the Consent Judgment. Please see Alpha's CA Prop 65 Statement for more information. |
| Packaging | Flange x Traverse x Barrel (inches) |
| Temperature Range | -35 to 105°C |
| Bend Radius | 10X Cable Diameter |
| Pull Tension | 130 Lbs, Maximum |
| Sunlight Resistance | Yes |
| Capacitance | 21.8 pF/ft @1 kHz, Nominal Conductor to Conductor |
| Inductance | 0.19 µH/ft, Nominal |
| Conductor DCR | 26 ?/1000ft @20°C, Nominal |
