Brand: Alpha Wire
|
SKU:
A5529
Alpha Wire 5529 SL001 | Xtra-Guard-Performance-Cable, 9 Conductor, 18 AWG, 600 V, PVC Jacket, PVC Insulation, 0.563 Jacket Diameter, 0.063 Jacket Thickness, 16/30 Stranding
Regular price
$19.78
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Alpha Wire 5529 SL001 | Xtra-Guard-Performance-Cable, 9 Conductor, ...
Regular price
$19.78
Unit price
Description
Description
Alpha Wire 5529 SL001 - NOT NEC - 18-9C STR TNC PVE FOIL +70%
Key Features
- High-performance cable for general-purpose applications
- Features a unique, premium-grade PVC insulation and jacket for Easier routing of cable in small spaces
- Provides resistance to oils per UL Oil Res I (60C OIL RES) and Class 43
- UL SUN RES
- Designed for use in ambient temperatures up to 105 ° C
- Temperature range of -35 ° C to + 105 ° C (SR-PVC) and -30 ° C to + 105 ° C (PVC)
- Provides exceptional protection contre EMI interference When Supra-Shield is specified
Specifications
Specifications
Specifications

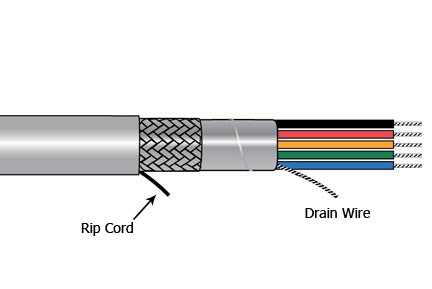

| Component 1 | 9 X 1 COND |
|---|---|
| Conductor | 18 (16/30) AWG Tinned Copper |
| Insulation | 0.032" Wall, Nom. PVC |
| Color Code | Alpha Wire Color Code E |
| Cable Assembly | 9 Components Cabled |
| Twists: | 2.5 Twists/foot (min) |
| Orientation: | Components to be arranged from INSIDE LAYER to OUTSIDE LAYER |
| Core Wrap | Nonwoven Polyester Tape, 25% Overlap, Min. |
| Shield: | A/P/A Tape, 25% Overlap, Min. |
| Drain Wire | 18 (16/30) AWG Tinned Copper |
| Braid | Tinned Copper,70% Coverage, Min. |
| Jacket | 0.063" Wall, Nom.,PVC |
| Color(s) | Slate, Black, Yellow, Orange, Blue, Green, Red, Sand Beige, White |
| Ripcord | 1 End 810 Denier Nylon |
| ALPHA WIRE-* P/N 5529 9C 18 AWG XTRAGUARD(R) 1 (UL) MTW 600V OR AWM 2501 105C600V OR AWM 21896 105C 600V SUN RES 60C OILVW-1 OR CRU AWM I/II A/B 105C 600VFT4 CE ROHS (SEQ FOOTAGE)* = Factory Code | |
| CE: EU Directive 2011/65/EU(RoHS2): | This product complies with European Directive 2011/65/EU (RoHS Directive) of the European Parliament and of the Council of 8 June 2011and the amending Directive 2015/863/EU of 4 June 2015 . No Exemptions are required for RoHS Compliance on this item. Consult Alpha Wire's web site for RoHS C of C. |
| REACH Regulation (EC 1907/2006): | This product does not contain Substances of Very High Concern (SVHC) listed on the European Union's REACH candidate list in excess of 0.1% mass of the item. For up-to-date information, please see Alpha's REACH SVHC Declaration. |
| California Proposition 65: | Exempt from warning labels based on the Consent Judgment. Please see Alpha's CA Prop 65 Statement for more information. |
| Packaging | Flange x Traverse x Barrel (inches) |
| Temperature Range | -30 to 105°C |
| Bend Radius | 10X Cable Diameter |
| Pull Tension | 135 Lbs, Maximum |
| Sunlight Resistance | Yes |
| Capacitance | 32 pF/ft @1 kHz, Nominal Conductor to Conductor |
| Ground Capacitance | 58 pF/ft @1 kHz, Nominal |
| Inductance | 0.22 µH/ft, Nominal |
| Conductor DCR | 7.1 ?/1000ft @20°C, Nominal |
| OA Shield DCR | 1.52 ?/1000ft @20°C, Nominal |
