Alpha Wire 5535 | Xtra-Guard-Performance-Cable, 5 Conductor, 16 AWG, SupraShield Premium Foil Braid, 600 V, PVC Jacket, PVC Insulation, 0.492 Jacket Diameter, 0.063 Jacket Thickness
Regular price
$17.14
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Alpha Wire 5535 | Xtra-Guard-Performance-Cable, 5 Conductor, 16 AWG...
Regular price
$17.14
Unit price
Description
Description

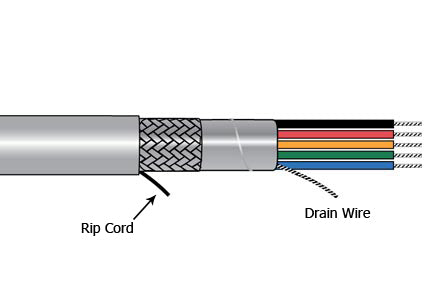

Alpha Wire 5535 - XTRA GUARD - 16-5C 19 STR TNC PVC FOIL SHD+
Key Features
- High-performance cable for general-purpose applications
- Features a unique, premium-grade PVC insulation and jacket for Easier routing of cable in small spaces
- Provides resistance to oils per UL Oil Res I (60C OIL RES) and Class 43
- UL SUN RES
- Designed for use in ambient temperatures up to 105 ° C
- Temperature range of -35 ° C to + 105 ° C (SR-PVC) and -30 ° C to + 105 ° C (PVC)
- Provides exceptional protection contre EMI interference When Supra-Shield is specified
Specifications
Specifications
Specifications
| Component 1 | 5 X 1 COND |
|---|---|
| Conductor | 16 (19/.0117) AWG Tinned Copper |
| Insulation | 0.032" Wall, Nom. PVC |
| Color Code | Alpha Wire Color Code E |
| Cable Assembly | 5 Components Cabled |
| Twists: | 3.0 Twists/foot (min) |
| Orientation: | Components to be arranged from INSIDE LAYER to OUTSIDE LAYER |
| Core Wrap | Nonwoven Polyester Tape, 25% Overlap, Min. |
| Shield: | A/P/A Tape, 25% Overlap, Min. |
| Drain Wire | 16 (19/.0117) AWG Tinned Copper |
| Braid | Tinned Copper,70% Coverage, Min. |
| Jacket | 0.063" Wall, Nom.,PVC |
| Color(s) | Slate, Black, Yellow, Orange, Blue, Green, Red, Sand Beige, White |
| Ripcord | 1 End 810 Denier Nylon |
| ALPHA WIRE-* P/N 5535 5C 16 AWG XTRAGUARD(R) 1 (UL) MTW 600V OR AWM 2501 105C600V OR AWM 21896 105C 600V SUN RES 60C OILVW-1 OR CRU AWM I/II A/B 105C 600VFT4 CE ROHS (SEQ FOOTAGE)* = Factory Code | |
| CE: EU Directive 2011/65/EU(RoHS2): | This product complies with European Directive 2011/65/EU (RoHS Directive) of the European Parliament and of the Council of 8 June 2011and the amending Directive 2015/863/EU of 4 June 2015 . No Exemptions are required for RoHS Compliance on this item. Consult Alpha Wire's web site for RoHS C of C. |
| REACH Regulation (EC 1907/2006): | This product does not contain Substances of Very High Concern (SVHC) listed on the European Union's REACH candidate list in excess of 0.1% mass of the item. For up-to-date information, please see Alpha's REACH SVHC Declaration. |
| California Proposition 65: | Exempt from warning labels based on the Consent Judgment. Please see Alpha's CA Prop 65 Statement for more information. |
| Packaging | Flange x Traverse x Barrel (inches) |
| Temperature Range | -30 to 105°C |
| Bend Radius | 10X Cable Diameter |
| Pull Tension | 129 Lbs, Maximum |
| Sunlight Resistance | Yes |
| Capacitance | 36 pF/ft @1 kHz, Nominal Conductor to Conductor |
| Ground Capacitance | 65 pF/ft @1 kHz, Nominal |
| Inductance | 0.2 µH/ft, Nominal |
| Conductor DCR | 4.4 ?/1000ft @20°C, Nominal |
| OA Shield DCR | 1.73 ?/1000ft @20°C, Nominal |
