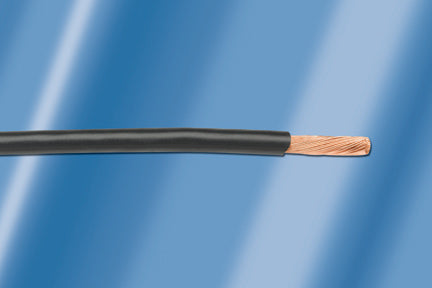

Alpha Wire 5856 RD001 | Hook Up Wire, 20 AWG, 1000 Feet, Red
Regular price
$2.65
Unit price
Brand: Alpha Wire
|
SKU:
A5856-0/9
Regular price
$2.65
Unit price
Description
Description
Alpha Wire 5856 RD001 Hook Up Wire, 20 AWG, 1000 Feet, Red
The broad range of hook-up wire from Alpha means you will find the product exactly suited to your application— whether it’s as straightforward as a control cabinet in a protected environment or as specialized as a machine tool on the factory floor, a high-temperature oven, or off-road construction equipment. Our hook-up wire is available in a variety of insulations to meet your needs for temperature, ability to withstand wear and abrasion, electrical performance, or resistance to oil, solvents, and chemicals.
Specifications
Specifications
Alpha Wire - 5856 RD001 - Specifications
| Manufacturer Part Mumber | 5856 RD001 |
|---|---|
| Brand name | Alpha Wire |
| Component 1 | 1 X 1 HOOKUP |
| Conductor | 20 (19/32) AWG Silver Plated Copper |
| Insulation | 0.010" Wall, Nom. PTFE |
| Temperature Range | -60 to 200°C |
| Bend Radius | 10X Cable Diameter |
| Pull Tension | 9.6 Lbs, Maximum |
| Voltage Rating | 600 V RMS |
| Inductance | 0.04 ?H/ft, Nominal |
| Conductor DCR | 8.7 ?/1000ft @20°C, Nominal |
| Conductor Material | SILVER PLATED COPPER |
| Conductor Size | 20 AWG (AMERICAN WIRE GAUGE) |
| Insulation Color | RED |
| Conductor Stranding | 19 STRANDS IN EACH CONDUCTOR |
| Product Type | M16878 |
| Insulation Material | TFE-TETRAFLUOROETHYLENE & PTFE |
| RoHS Compliant | NOT DECLARED |
| Mil Spec | MIL-W-16878/4 (TYPE E) |
| Temperature Rating | 200 DEGREES CENTIGRADE (393 F) |
| Shielded | Not Shielded |
| UNSPSC Code | 26121539 |
