Brand: Alpha Wire
|
SKU:
A5858-9-CF-VOL
Alpha Wire 5858 WH005 | 16 AWG 1-Conductor Stranded Silver-Plated Copper Wire, 100 ft
Regular price
$6.94
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Alpha Wire 5858 WH005 | 16 AWG 1-Conductor Stranded Silver-Plated C...
Regular price
$6.94
Unit price
Brand: Alpha Wire
|
SKU:
A5858-9-CF-VOL
Regular price
$6.94
Unit price
Shipping calculated at checkout.
Description
Description

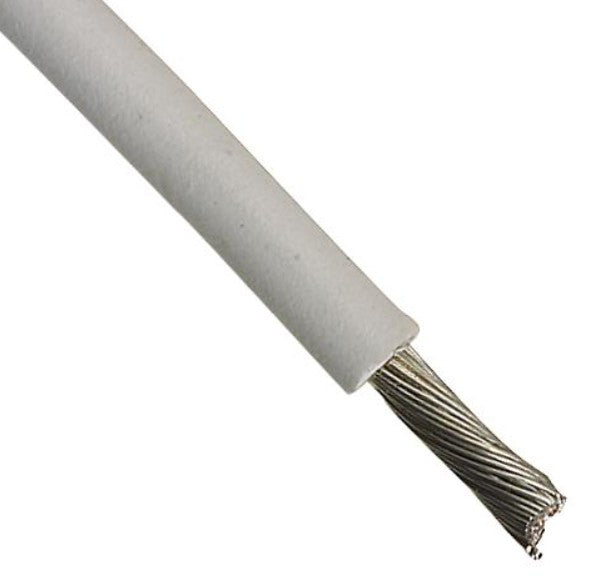

Alpha Wire 5858 WH005 | 16 AWG 1-Conductor Stranded Silver-Plated Copper Wire, 100 ft
The 5858 WH005 is a 100ft 16AWG white Hook-up Wire with silver plated copper conductor and a PTFE insulator. This MIL-DTL-16878/4 type E wire has the ability to withstand wear and abrasion, electrical properties and resistance to oil, solvents and chemicals. It provides excellent uniformity for easy handling, stripping and termination.
Alpha Wire - 5858 WH005 - Features
- CPR: Not Yet Qualified
- 19.1lbs Maximum pull tension
- 0.04µH/ft Nominal inductance
- 4.4?/1000ft at 20°C Nominal conductor DC resistance (DCR)
- -60 to 200°C Temperature range
Specifications
Specifications
Alpha Wire - 5858 WH005 - Specifications
| Jacket Material | PTFE |
|---|---|
| Wire Gauge | 16AWG |
| Reel Length (Imperial) | 100ft |
| Operating Temperature Max | 200°C |
| Voltage Rating | 600V |
| External Diameter | 2.03mm |
| Jacket Colour | White |
| No. of Max Strands x Strand Size | 19 x 29AWG |
| Reel Length (Metric) | 30.5m |
| Conductor Area CSA | 1.23mm² |
| Conductor Material | Silver Plated Copper |
