Brand: Alpha Wire
|
SKU:
A5938

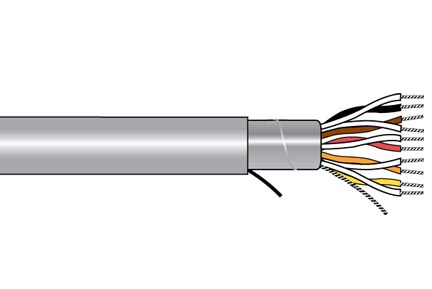

Alpha Wire 5938 SL001 | 4 (2 Pair Twisted) Conductor Multi-Pair Cable Slate 28 AWG Foil 1000.0' (304.8m)
Regular price
$5.39
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Alpha Wire 5938 SL001 | 4 (2 Pair Twisted) Conductor Multi-Pair Cab...
Regular price
$5.39
Unit price
Description
Description
4 (2 Pair Twisted) Conductor Multi-Pair Cable Slate 28 AWG Foil 1000.0' (304.8m)
Key Features
- High-performance cable for general-purpose applications
- Features a unique, premium-grade PVC insulation and jacket for Easier routing of cable in small spaces
- Provides resistance to oils per UL Oil Res I (60C OIL RES) and Class 43
- UL SUN RES
- Designed for use in ambient temperatures up to 105 ° C
- Temperature range of -35 ° C to + 105 ° C (SR-PVC) and -30 ° C to + 105 ° C (PVC)
- Provides exceptional protection contre EMI interference When Supra-Shield is specified
Specifications
Specifications
Specifications
| Component 1 | 2 X 1 PAIR |
|---|---|
| Conductor | 28 (7/36) AWG Tinned Copper |
| Insulation | 0.010" Wall, Nom. PVC, Semi Rigid |
| Color Code | Alpha Wire Color Code B |
| Pair | 2/Cond Cabled Together |
| Twists: | 12.0 Twists/foot (min) |
| Cable Assembly | 2 Components Cabled |
| Twists: | 9.6 Twists/foot (min) |
| Orientation: | Components to be arranged from INSIDE LAYER to OUTSIDE LAYER |
| Core Wrap | Nonwoven Polyester Tape, 25% Overlap, Min. |
| Shield: | Alum/Mylar Tape, 25% Overlap, Min. |
| Foil Direction | Foil Facing In |
| Drain Wire | 28 (7/36) AWG Tinned Copper |
| Jacket | 0.032" Wall, Nom.,PVC |
| Color(s) | Slate, Black, Yellow, Orange, Blue, Green, Red, Sand Beige, White |
| CE: EU Directive 2011/65/EU(RoHS2): | This product complies with European Directive 2011/65/EU (RoHS Directive) of the European Parliament and of the Council of 8 June 2011and the amending Directive 2015/863/EU of 4 June 2015 . No Exemptions are required for RoHS Compliance on this item. Consult Alpha Wire's web site for RoHS C of C. |
| REACH Regulation (EC 1907/2006): | This product does not contain Substances of Very High Concern (SVHC) listed on the European Union's REACH candidate list in excess of 0.1% mass of the item. For up-to-date information, please see Alpha's REACH SVHC Declaration. |
| California Proposition 65: | Exempt from warning labels based on the Consent Judgment. Please see Alpha's CA Prop 65 Statement for more information. |
| Packaging | Flange x Traverse x Barrel (inches) |
| Temperature Range | -35 to 105°C |
| Bend Radius | 10X Cable Diameter |
| Pull Tension | 6.9 Lbs, Maximum |
| Sunlight Resistance | Yes |
| Mutual Capacitance | 21.8 pF/ft @1 kHz, Nominal |
| Ground Capacitance | 39 pF/ft @1 kHz, Nominal |
| Characteristic Impedance | 82 ? |
| Inductance | 0.22 µH/ft, Nominal |
| Conductor DCR | 67 ?/1000ft @20°C, Nominal |
| OA Shield DCR | 37 ?/1000ft @20°C, Nominal |
