Alpha Wire 5951 BK001 | 30 AWG Hook-Up Wire Solid Black 1000.0'...
Regular price
$1.46
Unit price
Brand: Alpha Wire
|
SKU:
A5951-0
Regular price
$1.46
Unit price
Description
Description

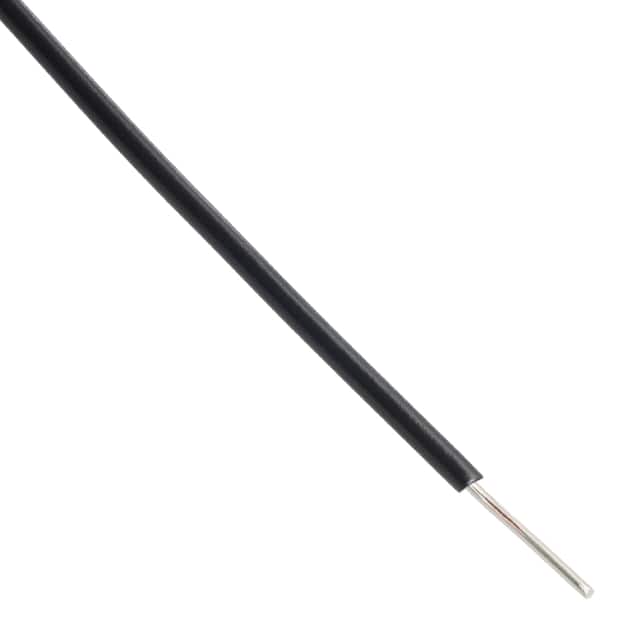

30 AWG Hook-Up Wire Solid Black 1000.0' (304.8m)
Specifications
Specifications
Specifications
| Categories | Cables, Wires |
|---|---|
| Manufacturer | Alpha Wire |
| Packaging | Spool |
| Part Status | Active |
| Cable Type | Hook-Up |
| Wire Gauge | 30 AWG |
| Conductor Material | Copper, Silver Coated |
| Jacket (Insulation) Material | Polyvinylidene Fluoride (PVDF) |
| Jacket (Insulation) Diameter | 0.020" (0.51mm) |
| Jacket (Insulation) Thickness | 0.005" (0.13mm) |
| Length | 1000.0' (304.8m) |
| Operating Temperature | -40°C ~ 125°C |
| Jacket Color | Black |
| Ratings | UL Style 1423 |
| Base Part Number | 5951 |
Environmental & Export Classifications
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
Additional Resources
| Standard Package | 1 |
|---|---|
| Other Names | 5951 BK001-ND, A5951B-1000, Q1766933 |
