Brand: Alpha Wire
|
SKU:
A6010C

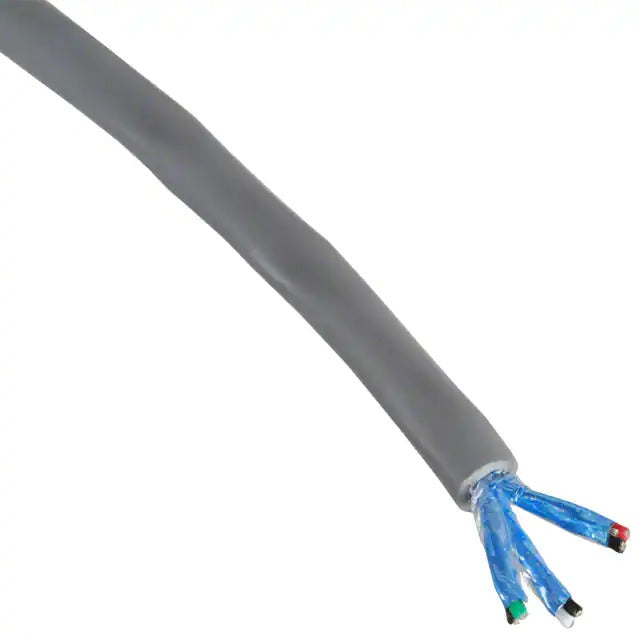

Alpha Wire 6010C SL001 | 6 (3 Pair Twisted) Conductor Multi-Pair Cable Slate 22 AWG Foil 1000.0' (304.8m)
Regular price
$3.00
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Alpha Wire 6010C SL001 | 6 (3 Pair Twisted) Conductor Multi-Pair Ca...
Regular price
$3.00
Unit price
Description
Description
6 (3 Pair Twisted) Conductor Multi-Pair Cable Slate 22 AWG Foil 1000.0' (304.8m)
Specifications
Specifications
Specifications
| Categories | Cables, Wires |
|---|---|
| Manufacturer | Alpha Wire |
| Packaging | Spool |
| Part Status | Active |
| Cable Type | Multi-Pair |
| Number of Conductors | 6 (3 Pair Twisted) |
| Wire Gauge | 7/30 |
| Conductor Material | Copper, Tinned |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket (Insulation) Diameter | 0.298" (7.57mm) |
| Shield Type | Foil |
| Length | 1000.0' (304.8m) |
| Jacket Color | Slate |
| Features | Drain Wire |
| Voltage | 300V |
| Operating Temperature | -20°C ~ 60°C |
| Usage | Communication, Control |
| Jacket (Insulation) Thickness | 0.0480" (1.219mm) |
| Conductor Insulation | Polypropylene (PP) |
| Shield Material | Aluminum |
| Shield Coverage | 100% |
| Base Part Number | 6010C |
Environmental & Export Classifications
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
Additional Resources
| Standard Package | 1 |
|---|---|
| Other Names | 6010C-1000, 6010CSL001, A132-1000 |
