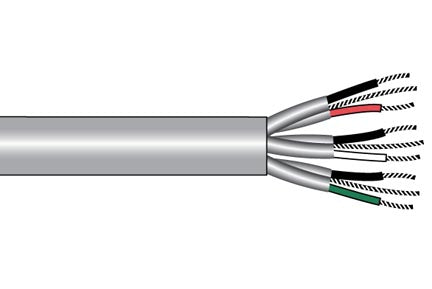

Alpha Wire 6062C SL005 | 18-2P STR TNC PVC Foil Shielded PVC Slate ...
Description
Description
Get control of your communication and control applications
Our line-up of standard communication and control cables gives you maximum choice and fewer tradeoffs. By offering you a comprehensive collection of insulation/jacketing materials, shielding options, and conductor counts, you can easily select the cable that meets your most demanding needs. We have cables that go beyond the ordinary to satisfy rigorous requirements of EMI performance, transmission distances, flexibility, and temperature extremes. Communication and Control Typical applications.
Alpha Wire - 6062C SL005 - Features
- Audio systems: speakers, microphones, intercoms
- Broadcast and studio
- Data transmission: RS-232, 422, 485
- CAD/CAM
- Computer peripherals
- Business machines
- Security systems: alarms, cameras, sensors
- Control systems
- Instrumentation systems
- Point-of-sale systems
- Banking systems
- Low capacitance cables for improved transmission distances and signal integrity.
Specifications
Specifications
Alpha Wire - 6062C SL005 - Specifications
| Component 1 | 2 x 1 Pair |
|---|---|
| Conductor | 18 (16/30) AWG Tinned Copper |
| Insulation | 0.016" Wall, Nom. PVC |
| Color Code | Alpha Wire Color Code A |
| Pair | 2/Cond Cabled Together |
| Twists | 5.3 Twists/foot (min.) |
| Shield | Foil Free Alum/Mylar Tape, 25% Overlap (min.) |
| Foil Direction | Foil Facing In |
| Drain Wire | 20 (10/30) AWG Tinned Copper |
| Cable Assembly | 2 Components Cabled |
| Twists | 2.8 Twists/foot (min.) |
| Orientation | Components to be arranged from INSIDE LAYER-to-OUTSIDE LAYER |
| Core Wrap | Clear Mylar Tape, 25% Overlap (min.) |
