Brand: Alpha Wire
|
SKU:
A6064C

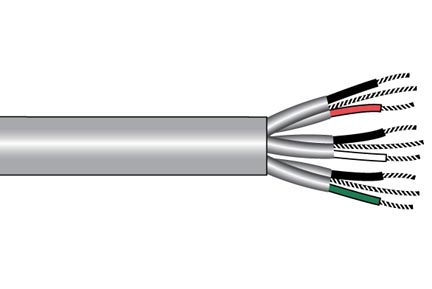

Alpha Wire 6064C SL001 | Communication & Control Cable, 18AWG, 4 Pairs, (16/30) Stranding, Foil, PVC, 1000 FT, Slate
Regular price
$8.10
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Alpha Wire 6064C SL001 | Communication & Control Cable, 18AWG, ...
Regular price
$8.10
Unit price
Description
Description
8 (4 Pair Twisted) Conductor Multi-Pair Cable Slate 18 AWG Foil 1000.0' (304.8m)
Key Features
- Audio systems: speakers, microphones, intercoms
- Broadcast and studio
- Data transmission: RS-232, 422, 485
- CAD/CAM
- Computer peripherals
- Business machines
- Security systems: alarms, cameras, sensors
- Control systems
- Instrumentation systems
- Point-of-sale systems
- Banking systems
Specifications
Specifications
Specifications
| Component 1 | 4 X 1 PAIR |
|---|---|
| Conductor | 18 (16/30) AWG Tinned Copper |
| Insulation | 0.016" Wall, Nom. PVC |
| Color Code | Alpha Wire Color Code A |
| Pair | 2/Cond Cabled Together |
| Twists: | 5.3 Twists/foot (min) |
| Shield: | Foil Free Alum/Mylar Tape, 25% Overlap, Min. |
| Foil Direction | Foil Facing In |
| Drain Wire | 20 (10/30) AWG Tinned Copper |
| Cable Assembly | 4 Components Cabled |
| Twists: | 2.4 Twists/foot (min) |
| Orientation: | Components to be arranged from INSIDE LAYER to OUTSIDE LAYER |
| Core Wrap | Clear Mylar Tape, 25% Overlap, Min. |
| Jacket | 0.053" Wall, Nom.,PVC |
| CE: EU Directive 2011/65/EU(RoHS2): | This product complies with European Directive 2011/65/EU (RoHS Directive) of the European Parliament and of the Council of 8 June 2011and the amending Directive 2015/863/EU of 4 June 2015 . No Exemptions are required for RoHS Compliance on this item. Consult Alpha Wire's web site for RoHS C of C. |
| REACH Regulation (EC 1907/2006): | This product does not contain Substances of Very High Concern (SVHC) listed on the European Union's REACH candidate list in excess of 0.1% mass of the item. For up-to-date information, please see Alpha's REACH SVHC Declaration. |
| California Proposition 65: | Exempt from warning labels based on the Consent Judgment. Please see Alpha's CA Prop 65 Statement for more information. |
| Packaging | Flange x Traverse x Barrel (inches) |
| Temperature Range | -20 to 80°C |
| Bend Radius | 10X Cable Diameter |
| Pull Tension | 132 Lbs, Maximum |
| Voltage Rating | 300 VRMS |
| Ground Capacitance | 90 pF/ft @1 kHz, Nominal |
| Characteristic Impedance | 42 ? |
| Inductance | 0.18 µH/ft, Nominal |
| Conductor DCR | 7.1 ?/1000ft @20°C, Nominal |
| Component Shield DCR | 8.6 ?/1000ft @20°C, Nominal |
